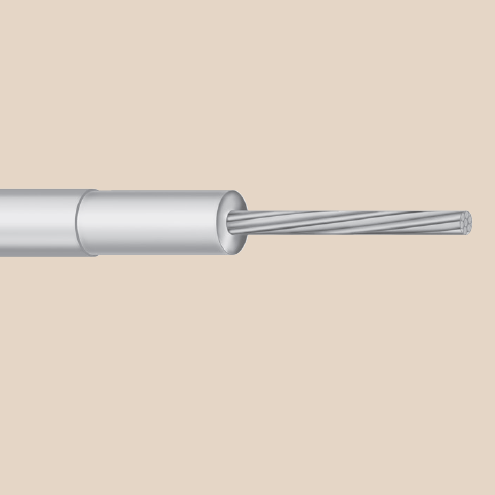

Exane®-15 Reduced Diameter Transit Wire

https://smartbim-library-production.s3.amazonaws.com/manufacturers/7dd0a216-b007-4fcf-8fdd-ea9084602d12/products/0052c50d-c9b6-47d6-86b8-4bf2e0b66549/179b5bf3-3636-4315-889e-6c3a6a2f8778/Reduced Diameter Transit Wire.png

Applications

(E)Mobility

Description


This dual layer, high temperature irradiated cross-linked transit wire utilizes the proven Exane® insulation and offers outstanding performance that makes it suitable for many applications where high density cabling and harnessing are required. Besides offering size and weight advantages, these wires have excellent resistance to flame, cut through, abrasion, cold flow, shrink back, notch propagation, and common chemicals. In addition, they strip and stripe easily, may be potted, and have low smoke characteristics. This wire should be considered for transit vehicle interior electronics equipment and other applications. (ET07_Exane_15)

Features


- Thermoset irradiation insulation system

- Superior mechanical properties

- Flame retardant

- High temperature

- Low smoke

- Light weight

- Excellent fluid, oil, and moisture resistance

- Smaller overall diameter

- REACH and RoHS compliant

PropertyValue
Construction - ConductorTin coated copper per ASTM B33, B172, AAR S-501, and AAR RP-585
Volts600
UL ListingsUL VW-1 • UL 1690 • UL 1685
Performance StandardsRSCC DAA 1168A • Temperature rating 125˚C • Low temperature rating -40˚C • IEEE-383 / FT4 / IEEE 1202 flame test • 49 CFR Part 238 flame and smoke requirements • BSS 7239 • NFPA 130-2020 article 8.6.7.1.1 FT4 / IEEE 1202 • ASTM E662 • NYCT TX-TW Issue 1
Construction - JacketCrosslinked modified fluoropolymer
Construction - InsulationExane crosslinked polyolefin
Product CategoryPower
Applications(E)Mobility
Temperature125ºC
Market ServedRollingstock
