Data Sheet

ZH Power Cables Single Conductor Armored & Unarmored

Exane® ZH low smoke zero halogen (LSZH), single conductor power, Tray Cable (TC) / Marine Shipboard Cables, bridge the performance gap between the premium Exane LSZH cables and IEC Halogen Free cables. These low voltage cables are commonly wired throughout the interior and exterior of offshore wind systems. The Exane ZH, LSZH insulation is radiation cross-linked and provides outstanding physical properties, resistance to abrasion, cut-through, low and high temperature, sunlight, and flame. It provides the low-smoke, non corrosive characteristics that have been deemed to be critical for sensitive electronic equipment and personnel. Exane ZH is Intertek listed to IEEE 1580 as Type LSX Marine Shipboard Cable, a low-smoke, zero-halogen cable that also meets IEC HF requirements. (E022)

Exane® ZH Power Cables Single Conductor Armored & Unarmored (Offshore Wind Substation)

ZH-CI Power Cables Circuit Integrity Single Power Unarmored & Armored & Sheathed

ZH-CI Power cables circuit Integrity Single

Exane® ZH-CI, low smoke zero halogen (LSZH) circuit integrity single conductor power, Tray Cable (TC) / Marine Shipboard Cables, bridge the performance gap between the premium Exane LSZH cables and the IEC Halogen Free cables. These cables are commonly used in safety and emergency shut down systems, fire pumps, UPS systems, MCC and switch gear. The Exane ZH insulation is radiation cross- linked and provides outstanding physical properties, such as: resistance to abrasion, cut-through, low and high temperature, sunlight, and flame. It is a low-smoke, zero halogen material that is extremely tough and durable, capable of withstanding arduous environmental conditions experienced in offshore LV wind substations and wind turbines. It provides the low-smoke, non corrosive characteristics that have been deemed to be critical for sensitive electronic and fire safety equipment. Exane ZH is Intertek listed to IEEE 1580 as Type LSX Marine Shipboard Cable, a low-smoke, zero-halogen cable that also meets IEC HF requirements. (E034)

Exane® ZH-CI Power Cables Circuit Integrity Single Power Unarmored & Armored & Sheathed (Offshore Wind Substations)

ZH-VFD Power Cables Three Conductors Armored & Unarmored

VFD Power Cables Three Conductors

Exane® ZH low smoke zero halogen (LSZH), multi-conductor VFD, Tray Cable (TC) / Marine Shipboard Cables, bridge the performance gap between the premium Exane LSZH cables and IEC Halogen Free cables. These low voltage multi conductor cables with segmented grounds, optimize the performance of IGBT type drives, reducing the effects of ground noise, crosstalk, and transient standing wave voltages. These high performance cables are commonly installed in the interior and exterior of offshore wind systems. The Exane® ZH, LSZH insulation is radiation cross-linked and provides outstanding physical properties, resistance to abrasion, cut-through, low and high temperature, sunlight, and flame. It provides the low-smoke, non corrosive characteristics that have been deemed to be critical for sensitive electronic equipment and personnel. Exane ZH is Intertek listed to IEEE 1580 as Type LSX Marine Shipboard Cable, a low-smoke, zero-halogen cable that also meets IEC HF requirements. (E025)

Exane® ZH-VFD Power Cables Three Conductors Armored & Unarmored (Offshore Wind Substations)

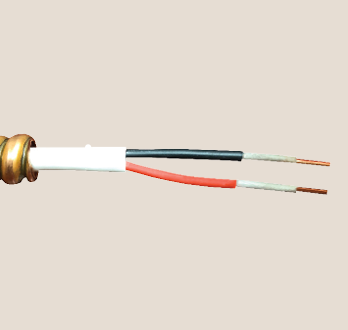

VITALink® Armored Cable

Vita Armored Cable

VITALink® Armored cables are
ideal for:
Low voltage critical circuits located in
enclosed spaces or harsh
environments, such as:
• Transit Tunnels & Platforms
• Underground & Below Grade
Structures, e.g. Parking Garages
• Petrochemical, Nuclear, & Waste
Treatment Facilities
• Commercial Retrofits with Non-
UL 2196 Approved Conduit (VC07)

Scotch Plain

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Material

Unitized G600 casement next to fixed with panning leg and co-extruded trim

Unitized G600 Casement

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Marmon Industrial Energy & Infrastructure Technical Resources

Marmon IEI works within a wide variety of industries and markets.

Request A Quote

Technical Resources

Alchemco

Christie Digital

The Bilco Company

Stonepeak

Moore Co Inc

Rinnai America Corp

Cornell Cookson

Viessmann Digital

Tubelite

Jonti Craft

The Noble Co

Interstate Brick

MIRAGE Flooring

Armacell

Atkore International

GAF Materials

Novawall Systems, Inc.

System Level Account

Heating & Cooling Products

J&J / Invision

Armacell, LLC

Contrax (MeTEOR)

Georgia Pacific

Meteor Lighting

Draper, Inc.

Big Ass Fans/ Big Ass Solutions

Shaw Industries

Bernina Flooring

Keilhauer

Arconas

Davis Colors

Oldcastle Architectural

Media Technologies

Roxul

The VMC Group

Armstrong International - Hot Water Products

Carnes Co

Karona Door

Ideal Industries Inc

Tiger Foam - Commercial Thermal Solutions Inc

Kolbe & Kolbe Millwork Co., Inc.

InPro

VIA Inc [VIA Seating]

Nanawall

Armstrong Commercial Flooring

H.E. Williams, inc.

Acutherm

Penco Products, Inc.

Continental

Chief is a division of Milestone AV Technologies

Friedrich

Armstrong Medical Industries

Bard Manufacturing Co

Delray Lighting Inc.

Stepstone Inc

Knauf Insulation

USA Capitol

Moderco Inc

General Cable

Tandus-Centiva

Slant Fin

Armstrong International

ClimaCool

AmTab Manufacturing Corp

Power-Strut®

Owens Corning

NexLight

Property	Value
Construction - Armor	Copper
Construction - Binder Tape	Black or White Fire-Roc®
Construction - Cabling	2-8 Conductors
Construction - Conductor	16 AWG & 14 AWG Solid Bare Copper
Construction - Shield	Shield 1 and Shield 2 - Copper/Polyester Tape (Shielded constructions only)
Construction - Jacket	Black or Red Non-Halogen Flame Retardant Polyolefin (Sequential footage markers every 2 feet) Alternative jacket colors & non-black jacket striping (on the outside of the armor or jacket) available upon request
Construction - Insulation	LSZH Thermoset Fire-Roc®
Construction - Tape	Flame Retardant Tape
CSA Listings	FAS 105 ST1 FT4
Performance Standards	ULC-S139/2196 Listed with Hose Stream for use in FHIT7 System 40B • NFPA 70, 72, 130, and 502 • California State Fire Marshal Approved • RoHS Compliant
UL Listings	UL 2196 2 Hour fire rating for use in FHIT System 40B • UL Type FPLR-ST1 and CL3R-ST1 • UL 1424 • UL 13
Volts	300
Product Category	Power, Circuit Integrity
Region	Canada
Market Served	Commercial Infrastructure, Transit
Temperature	90ºC
