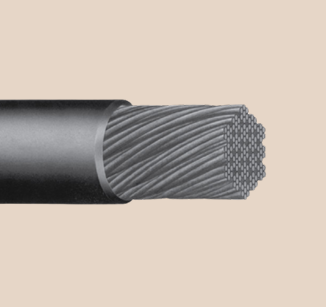

Rock-Flex® ESS-K 2KV is a single conductor, power cable utilizing flexible Class K conductor. Its tough LSZH thermoset construction allows for its use in Central Office Power (COP) applications. The wire intended use is for 2KV AC or DC applications in Central Offices (COs), Outside Plant (OSP) remote terminals, Customer Premises and Building Entrance Terminals (BETs) and cell towers and data centers. The wire is approved by Telcordia to GR- 347-Core “Generic Requirements for Telecommunications Power Cable” Central Office Power (COP). LSZH insulation is preferred for highly occupied environments or areas with large concentrations of equipment. (IN28)
- Telcordia (Bellcore) GR-347-CORE and ATIS-0600017 2014
- Flexible Class K TC conductor for improved terminations and corrosion resistance in wet and contaminated environments.
- Low Smoke Zero Halogen design (LSZH) per Telcordia GR-347-CORE
- RoHS and REACH compliant and Lead Free.
- Electron-Beamed thermoset insulation for enhanced thermal stability
- Specially formulated insulation for superior long-term water resistance (2 years)
- Proprietary single-pass insulating/jacketing process allows for a significant
- Overall diameter reduction (>12 - 15%) over standard two-pass designs saving
- Valuable space in cabling pathways and providing an overall cost reduction
- Superior flame retardance
- Excellent mechanical properties including Abrasion, Notch Propagation, Cut Through and Heat Deformation
- Easy stripability, no separator tape over conductor
- Low friction surface for reduced pulling tension
- Can be installed in Conduit, Duct, Raceway, Aerial or Direct Burial
- Can be used in -40C to 125C applications
