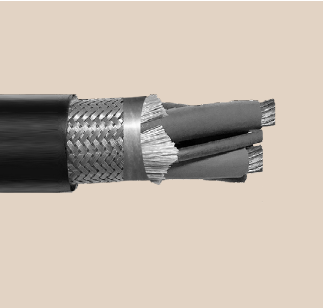

Rock-Flex® VFD Cable UL 2225 Crush & Impact Resistant

Rock-Flex® Flexible TC-ER VFD Cable UL 2225 Crush & Impact Resistant

Rock-Flex® Type TC VFD Cable 2kV is specifically designed to combat the problems of system performance and signal disruption in AC Motors and Drives. (IN23)

Rock-Flex® Type TC VFD Cable 2kV

wescott

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Markets

Volts

Product Category

Tubing Type

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Marmon Industrial Energy & Infrastructure Technical Resources

Marmon IEI works within a wide variety of industries and markets.

Request A Quote

Technical Resources

Alchemco

Christie Digital

The Bilco Company

Stonepeak

Moore Co Inc

Rinnai America Corp

Cornell Cookson

Viessmann Digital

Tubelite

Jonti Craft

The Noble Co

Interstate Brick

MIRAGE Flooring

Armacell

Atkore International

GAF Materials

Novawall Systems, Inc.

System Level Account

Heating & Cooling Products

J&J / Invision

Armacell, LLC

Contrax (MeTEOR)

Georgia Pacific

Meteor Lighting

Draper, Inc.

Big Ass Fans/ Big Ass Solutions

Shaw Industries

Bernina Flooring

Keilhauer

Arconas

Davis Colors

Oldcastle Architectural

Media Technologies

Roxul

The VMC Group

Armstrong International - Hot Water Products

Carnes Co

Karona Door

Ideal Industries Inc

Tiger Foam - Commercial Thermal Solutions Inc

Kolbe & Kolbe Millwork Co., Inc.

InPro

VIA Inc [VIA Seating]

Nanawall

Armstrong Commercial Flooring

H.E. Williams, inc.

Acutherm

Penco Products, Inc.

Continental

Chief is a division of Milestone AV Technologies

Friedrich

Armstrong Medical Industries

Bard Manufacturing Co

Delray Lighting Inc.

Stepstone Inc

Knauf Insulation

USA Capitol

Moderco Inc

General Cable

Tandus-Centiva

Slant Fin

Armstrong International

ClimaCool

AmTab Manufacturing Corp

Power-Strut®

Owens Corning

NexLight

Caleffi

Coronet, Inc

Schott North America

Schneider Electric USA Inc

National Office Furniture, Inc.

Tarkett

Kimball Office

Prudential Lighting

Cardinal Detecto

Jeld-Wen, Inc.

Property	Value
Construction - Conductor	Annealed, flexible tinned copper, Class K per ASTM B33, B172 & B174
Construction - Insulation	Irradiation cross-linked XLPE
Volts	2000
Construction - Jacket	Black, heavy-duty, arctic grade thermoset
Construction - Fillers	Flame retardant fibrillated polypropylene, as required
Construction - Ground Conductors	Three segmented, green insulated grounding conductors with the same voltage rating as the circuit conductors
Product Category	Power
Construction - Circuit Identification	Power Conductors – ICEA Method 4 (black and numbered) or black, white and red colored conductors
Applications	(E)Mobility, Flexing
Market Served	Mining & Industrial OEM
Temperature	90ºC

Product Details

Rock-Flex® Type TC VFD Cable 2kV
