Product Details
| Property | Value |
|---|---|
| Applications | Harsh Environment Power Control Instrumentation |

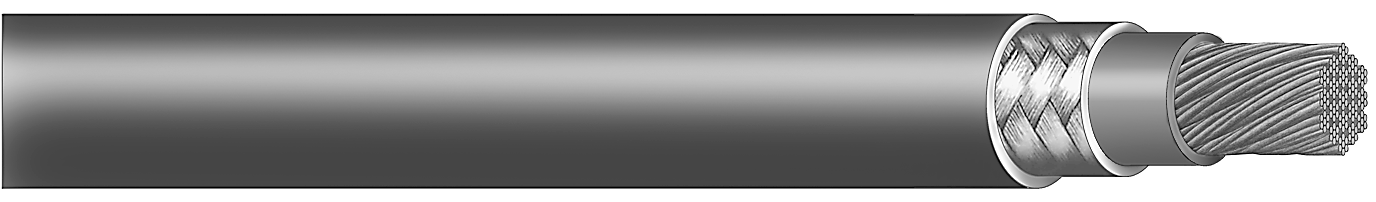

| Construction - Armor (optional) | Bronze Braid – Standard. Tinned Copper Braid – Optional |
| Construction - Circuit Identification | Vivid pigmented insulation. Colors available on request per IEEE 1580. Standard color is Dk. Gray |
| Construction - Conductor | Flexible, soft annealed tinned copper per ASTM B33 & IEEE 1580 |
| Construction - Insulation | Irradiation cross-linked Polyolefin, Exane® 125˚C |
| Construction - Jacket | Black, Heavy Duty, Arctic Grade Neoprene. Sunlight resistant |
| Construction - Temperature Rating | Marmon IEI rated 125˚C, UL/CSA 110˚C, IEEE 100˚C |
| Market Served | Oil & Gas, Clean Energy |
| Performance Standards | IEEE 45/1580 Type P • Intertek Testing Service (ETL) certified as Type P • IEEE 1202 & FT-4 70,000 Btu/hr Vertical Tray Flame Tests • IEC 60332-3-22 Category A/F Flame Test • Type Approved by ABS, DNV GL and Lloyd’s Register NA • Armored & Sheathed cables are suitable for use in Class 1, Division 1 and Zone 1 hazardous locations • Unarmored cables are suitable for use in Class 1, Division 2 and Zone 2 hazardous locations |
| Product Category | Power |
| Temperature | 125ºC |
| UL Listings | UL 1309 Marine Shipboard Cable (E83358) |
| Volts | 300, 1000,2000 |
| CSA Listings | CSA C22.2 No. 245 Marine Shipboard |
