Product Details

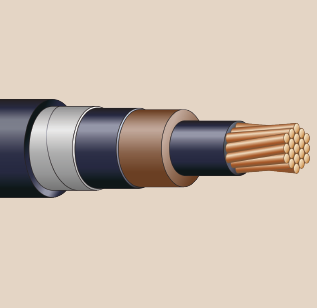

PermaLife® LSZH Shielded Medium Voltage Power Cable 5-35kV Discharge Resistant Kerite® Insulation System
Brand
PermaLife®
Description
PermaLife® medium voltage is a jacketed single conductor power cable designed for applications in Nuclear Power Generating Plants and Substations. It is intended for use in harsh and demanding environments and qualified for Class 1E applications (LOCA Qualified). It may be installed indoors or outdoors in trays, ducts, conduits, direct burial, or aerial applications to perform a variety of power functions. (NU16_A)
Features
- Permashield® non-conducting stress control layer
- Kerite® discharge resistant insulation system
- Helically applied tinned copper tape shield
- See data sheet for more features
| Property | Value |
|---|---|
| UL Listings | Meets the low smoke generation requirements of UL 1685 and CSA FT4 |
| Performance Standards | Class 1E qualified in accordance with IEEE 383-1974/2003 and IEEE 323-1974/2003 |
| Product Category | Nuclear |
| Construction - Conductor Shield | Permashield® conductor shield (non-conducting stress control layer) |
| Construction - Conductor | Bare copper (tinned copper also available), class “B” compressed strand (compact strand also available) |
| Construction - Barrier Tape | Flame barrier tape(s) |
| Concstruction - Metallic Shield | 5 mil helically applied tinned copper tape with 20% overlap |
| Class | Class 1E Nuclear |
| Construction - Jacket | Flexible, thermoset low smoke zero halogen (LSZH) |
| Construction - Insulation Shield | Thermoset semiconducting layer |
| Construction - Insulation | Proprietary Kerite® discharge resistant insulation |
Product Resource download links.
