Product Details

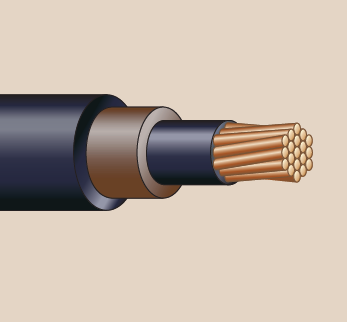

PermaLife Nonshielded Medium Voltage Power Cable 5kV Discharge Resistant Kerite Insulation System
Applications
Harsh Environment Power Control Instrumentation
Description
PermaLife® medium voltage is a jacketed single conductor power cable designed for applications in Nuclear Power Generating Plants and Substations. It is intended for use in harsh and demanding environments and qualified for Class 1E applications (LOCA Qualified). It may be installed indoors or outdoors in trays, ducts, conduits, direct burial, or aerial applications to perform a variety of power functions. (NU16_B)
Features
- Permashield non-conducting stress control layer
- Kerite discharge resistant EPR insulation
- Variable Frequency Drive (VFD) Design
- See data sheet for more features
| Property | Value |
|---|---|
| Volts | 600 |
| Performance Standards | Class 1E qualified in accordance with IEEE 383-1974 and IEEE 323-1974 |
| Construction - Jacket | Flexible, thermoset low smoke zero halogen (LSZH) |
| Construction - Insulation | Proprietary Kerite discharge resistant insulation |
| Construction - Conductor Shield | Permashield conductor shield (non-conducting stress control layer) |
| Construction - Conductor | Bare copper (tinned copper also available), class “B” compressed strand (compact strand also available) |
| Construction - Braid | Woven glass braid |
| Class | Class 1E Nuclear |
| Applications | Harsh Environment Power Control Instrumentation |
| Market Served | Nuclear |
| Temperature | 90ºC |
| Product Category | Power |
