Product Details
| Property | Value |
|---|---|
| Construction - Binder Tape | Helically applied polyester |
| Construction - Cabling | Required number of pairs cabled together |
| Construction - Circuit Identification | Individual pair single conductors color coded to ANSI requirements by means of colored braids with printed pair numbers on both singles for pair identification |
| Construction - Conductor | Solid alloys per ANSI MC 96.1 (Extension Grade, standard limits of error) |
| Construction - Covering | Glass braid with high temperature finish |
| Construction - Fillers | As applicable |
| Construction - Overall Covering | Rockhide® braid* with high temperature finish (colors to ANSI standards by type) |

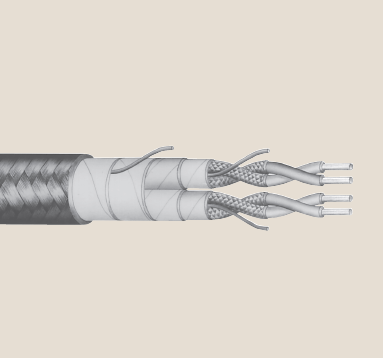

| Construction - Pair Assembly | Two insulated and braided conductors twisted with a flexible strand, tin-coated copper drain wire, a helically applied aluminum/polyester laminated tape shield and an isolation tape |
| Construction - Shield System | Helically applied aluminum/polyester laminated tape shield in continuous contact with a flexible strand, tin-coated copper drain wire |
| Construction - Insulation | Proprietary heat, moisture and radiation resistant silicone rubber |
| Performance Standards | ICEA S-19-81 • Class 1E with IEEE 383-1974 and IEEE 323-1974 • IEEE 383 1974 NRC Reg. Guide 1.131 • ANSI standard MC 96.1 • ICEA T-29-520 • IEEE 383-1974 para. 2.5.6 (ICEA S-19-81 Section 6.19.6) • 10 CFR 50 Appendix B |
| Product Category | Thermocouple |
| Applications | Harsh Environment Power Control Instrumentation |
| Market Served | Nuclear |
| Temperature | 125ºC |
| Volts | 600 |
