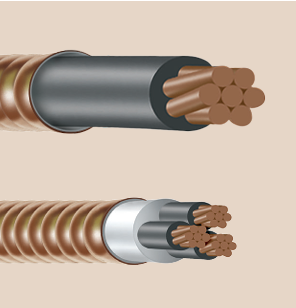

VITALink® MC-metric is a 2-hour fire rated
cable system listed to UL 2196 and 3-hour
fire rated cable to BS 6387.
When installed in accordance with the
listed system components and instructions,
VITALink® MC-metric meets local code
requirements for Fire Rated Circuits,
Electrical Circuit Integrity Systems,
Survivability, and Circuit Integrity.
The cables’ copper armour serves as
the earth grounding conductor and is
terminated with commercially available MC
grounding glands. The cables are installed
without the need for splicing or special
tools.
VITALink® MC-metric cables offer
significantly higher performance and
reliability over other fire rated cables with
ease of installation advantages.
VITALink® MC-metric is not susceptible
to moisture ingress through leaky seals or
faulty storage and can be installed in wet
dry, humid and aggressive environments.
VITALink® MC-metric is mechanically
robust and highly resistant to impact,
cut through and crush. Can be used in
hazardous locations with appropriate
flameproof glands. (VC02-VITALink)
- Fire resistance to UL 2196, AS/NZS 3013 - 2 hr. FRR
- Fire Resistance to BS 6387 CWZ - 3 hr. FRR
- Superior resistance to flame propagation
- Tested and certified for vertical and horizontal installation
- Halogen free, low toxicity, low smoke, low fuel element
- Only conventional tools required to install and terminate
- Commercially available earthing glands
- Printed number coding allows for easy identification
- Labor savings on termination, installation and handling
- Made in USA
- Superior impact & crush resistance
- Welded armour forms an impervious barrier to water, contaminants and rodents
- Flexible and easy to install. No special tools or training required
- Full range of cable sizes with long continuous lengths available
- No insulation resistance issues when terminating in humid environments
- VFD cable available with 3 split earth conductors
- Copper sheath exceeds code requirements for equipment grounding conductor
