Thermocouple Extension Cable Multi-Shielded Pairs With Overall Shield

Firewall® III Thermocouple Extension Cable Multi-Shielded

Firewall® III Thermocouple Extension
Cable is a totally thermoset construction
specifically designed for applications in
power generation plants, substations
and other similar locations. It is intended
for use in harsh and demanding
environments, including Class 1E
nuclear applications. It may be installed
in trays, ducts, conduits or in direct
burial applications. Designed for use
on circuits where complete isolation
is required between pairs and from (NU12_D)

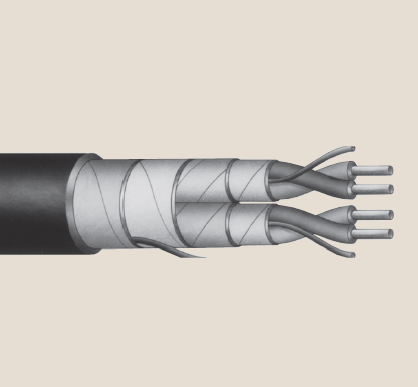

Firewall® III Thermocouple Extension Cable Multi-Shielded Pairs With Overall Shield (XLPE/HD-CSPE)
