Product Details
| Property | Value |
|---|---|

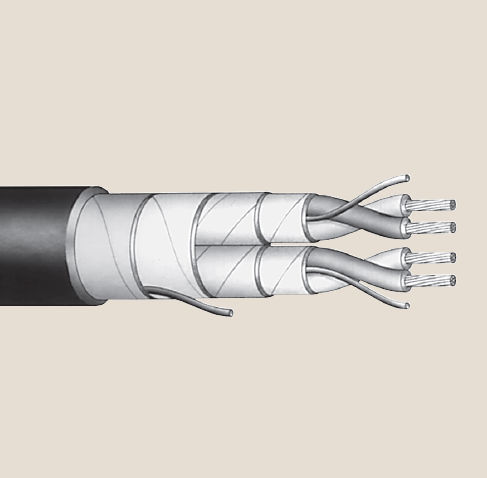

| Construction - Pair Assembly | Two insulated conductors twisted with a flexible strand tin-coated copper drain wire, a helically applied aluminum/ polyester laminated tape shield, and an isolation tape |
| Construction - Overall Shield System | Helically applied aluminum/polyester laminated tape shield in continuous contact with a flexible strand tin-coated copper drain wire |
| Construction - Jacket | Hypalon® black, heavy-duty chlorosulfonated polyethylene (HD-CSPE) |
| Construction - Insulation | Proprietary heat, moisture and radiation resistant flame retardant crosslinked polyethylene |
| Construction - Fillers | As applicable |
| Construction - Conductor | Annealed, tin-coated copper, Class "B" strand (ASTM B8 & B33) |
| Construction - Circuit Identification | One black and one white insulated single conductor in each pair with printed pair numbers on both singles for pair identification (alternate methods also available) |
| Construction - Cabling | Required number of pairs cabled together |
| Construction - Binder Tape | Helically applied |
| Volts | 600 |
| UL Listings | 90°C both wet & dry locations • and UL VW-1 • UL 1277 (Cable Tray Installation |
| Product Category | Instrumentation |
| Performance Standards | Insulation ICEA S-66-524 • Jackets ICEA S-19-81 CSPE)• Class 1E IEEE 383-1974 and IEEE 323-1974 (RSCC Reports QR-5804 or QR-5805)• IEEE 383-1974 70,000 BTU flame test as modified by NRC Reg. Guide 1.131 • Cable passes ICEA T-29-520 210,000 BTU flame test • IEEE 383 1974 para. 2.5.6 (ICEA S-19-81 Section 6.19.6) • 10 CFR 50 Appendix B • National Electrical Code (Class 1, Division 2 hazardous locations) |
| Applications | Harsh Environment Power Control Instrumentation |
| Market Served | Nuclear |
| Temperature | 90ºC |
