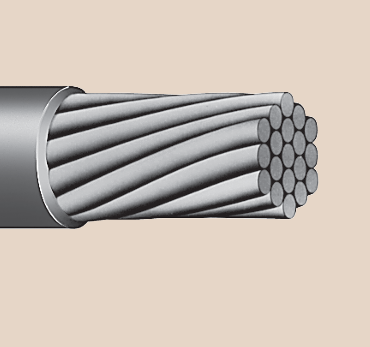

Product Details
| Property | Value |
|---|---|
| Performance Standards | Insulation ICEA • IEEE 1202/FT4 flame test and ICEA 70,000 BTU flame test (T-30-520) • ICEA S-95-658 (6.8.2) • NFPA 130 & 502 • CT Use 1/0 AWG and larger •49 CFR Part 238 for flame per ICEA S-19-81 • 49 CFR Part 238 for smoke requirements ASTM E662 • IEEE-383 1974 vertical tray flame test |
| Construction - Separator Tape | Helically applied polyester (where required) |
| Product Category | Power |
| Applications | (E)Mobility |
| Market Served | Transit |
| Temperature | 90ºC |
| Volts | 2000 |
| UL Listings | UL 44 • UL1277 and UL 1685 (limited smoke) • 90ºC for both wet and dry locations • sunlight resistance (black only) • gasoline and oil resistant |
| Construction - Insulation | Flame retardant low Smoke Zero Halogen crosslinked polyolefin |
| Construction - Conductor | Annealed, tin-coated copper, Class “I” (Class B for #12 and #14 AWG) strand per ASTM B-8 & B-33. (#12 and #14 AWG available as solid or Class C conductors when required) |
| Construction - Color Code | Black (Available in pigmented colors or colored stripes) |
