Product Details

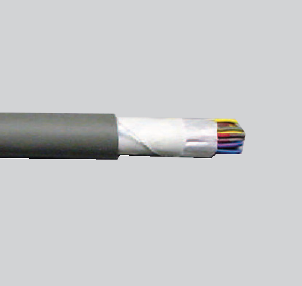

HUB-Link® LSZH Telecommunication Cable
Applications
Harsh Environment Power Control Instrumentation
Description
HUB-Link® LSZH Telecommunication cables are ideal for the following applications: • Transit, Subways, Tunnels • Various Mass Transportation Facilities • Voice and Data (HT03)
Features
- Suitable for use in wet locations
| Property | Value |
|---|---|
| Construction - Cable Consctruction | 2-100 Pairs or 2-8 Conductors |
| Construction - Insulation | Crosslinked Polyolefin |
| Construction - Jacket | Gray or Black LSZH Polyolefin (Alternative colors available upon request) |
| Construction - Tape 1 | Aramid Tape |
| Construction - Tape 2 | Flame retardant Woven Fabric |
| cUL Listing | Type CMG-ST1 |
| Performance Standards | IEEE 1202/ FT-4 • NFPA 130, 502 • California State Fire Marshal Approved |
| Volts | 300 |
| Construction - Conductor | 22 AWG Solid Bare Copper, or 12-18 AWG Solid or Stranded |
| UL Listings | UL CL3-ST1, FPL-ST1 • UL 444 • UL 13 • UL 1424 • UL 1685 • UL Approved 90°C • UL 13 & 1424 |
| Product Category | Communications |
| Applications | Harsh Environment Power Control Instrumentation |
| Market Served | Transit |
