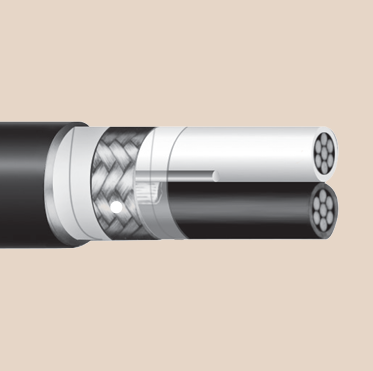

ECP Brake Cable Flexible – Intercar
Applications
Brake Cable
Description
AAR approved power and signal cable suitable for wiring interchange freight cars and locomotives equipped with ECP Brake Systems. This cable is ideal for use between cars where flexibility and strength are important and molding to the AAR approved connector is essential. (ET46)
| Property | Value |
|---|---|
| Construction - Impedance | 50 +/- 5 ohms |
| Applications | Brake Cable |
| Volts | 600 |
| UL Listings | UL 1581 |
| Product Category | Power |
| Performance Standards | AAR Specification S-4210 (August 2014) • ASTM B-33 ICEA S-95-658 • MIL-C-13777 |
| Market Served | Rollingstock |
| Construction - Shield/Drainwire | #16 AWG stranded tinned copper, spirally applied |
| Construction - Separator Tape | Polyester tape |
| Construction - Jacket | Low temperature heavy duty neoprene reinforced per MIL-C-13777 |
| Construction - Insulation | Cross-linked polyolefin (Exane) |
| Construction - Diameter | .725 +/- .025 inch |
| Construction - Conductor | #8 AWG (37/24) stranded tinned copper per ASTM B-33 |
| Construction - Color Code | (1) Black, (1) White |
| Construction - Braid Shield: | #34 AWG tinned copper with an 85% minimum coverage |
