FW LSZH 600v Control cable

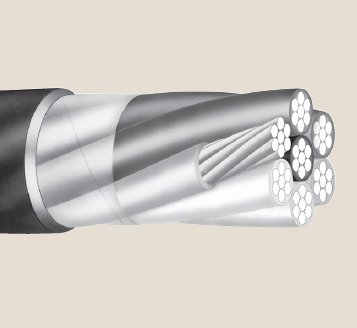

Firewall® LSZH Type TC Control Cable

Firewall® LSZH is a totally low smoke, zero halogen cable comprised of both thermoset insulation and jacket material. It provides superior resistance to fire and moisture. It may be installed in wet and dry locations, indoors and outdoors, in metal trays, conduits, ducts, or in direct burial applications. It is ideal for applications in transit systems and tunnels to perform a variety of control and related functions. (ET23)

Lake House

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Material

The Craftsman Series pulls design inspiration from 20th century architecture, featuring a flat panel and a traditional style. This series offers a selection of ovolo profiles, simple Shaker profiles, and sleek direct glazed options, combining modern and classic elements. Grain options in this series are Fir and Smooth.

Craftsman

The Nova series features glass that is directly glazed into the door to create a seamless blend between the glass and door. The large pane glass allows the greatest views and amount of light into your home, brightening up the space and filling it with energy. Nova comes in two models: the 45 with a traditional, Craftsman sticking and the 90 with a modern, Shaker sticking. The 45 is available in Smooth and Fir grain. The 90 is available in a brushed smooth skin.

Nova

Our Smooth Doors are made with a pre-pigmented white skin; its simplicity gives a modern design and feel to any home. Our Smooth skin, incorporated with a variety of panel designs and glass options, gives a clean, minimal look to any of our fiberglass doors.

Smooth

Plastpro’s High Velocity Hurricane Zone (HVHZ) Impact Doors are engineered to withstand the force of flying objects, while maintaining all the benefits and beauty of our door aesthetic. Our Impact Doors are created, tested, and certified to meet the most stringent wind and impact code requirements in the nation.

HVHZ Impact

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Property	Value
Performance Standards	Insulation ICEA • IEEE 1202/FT4 flame test and ICEA 70,000 BTU/hr flame test (T-30-520) • flame test Type A in ICEA S-95-658 (6.8.2) • ICEA publication T-33-655, Type II • NFPA 130 & 502
UL Listings	Type XHHW-2 • UL 1277 • UL 1685 • 90°C both wet and dry locations • Jacket UL class XL/90°C • sunlight resistance • gasoline and oil resistance
Volts	600, 1000
Construction - Jacket	Reduced wall, black, flame retardant crosslinked low smoke zero halogen polyolefin
Construction - Insulation	Flame retardant low Smoke Zero Halogen crosslinked polyolefin
Construction - Fillers	(Where required)
Construction - Conductor	Annealed, tin-coated copper, class “B” strand (ASTM B-8 & B-33)
Construction - Circuit Identification	Printed numbers per ICEA Method 4. (Alt. colors available upon request)
Construction - Binder Tape	Helically applied polyester
Product Category	Signal, Power
Market Served	Transit
Temperature	90ºC
Applications	Harsh Environment Power Control Instrumentation

Product Details

Firewall® LSZH Type TC Control Cable
