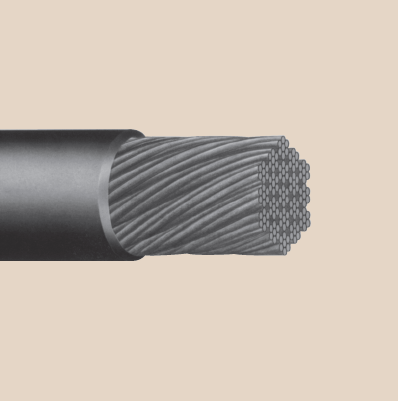

Rock-Flex® COP is a single conductor, power cable utilizing flexible Class K conductor. Its tough LSZH thermoset construction allows for its use in Central Office Power (COP) applications. The wire intended use is for 600/1000V AC or DC applications in Central Offices (COs), Outside Plant (OSP) remote terminals, Customer Premises and Building Entrance Terminals (BETs) and cell towers and data centers. The wire is approved by Telcordia to GR-347-Core “Generic Requirements for Telecommunications Power Cable” Central Office Power (COP). LSZH insulation is preferred for highly occupied environments or areas with large concentrations of equipment. (IN18)
- Telcordia (Bellcore) GR-347-CORE and ATIS-0600017 2014
- Flexible Class K TC conductor for improved terminations and corrosion resistance
- Low Smoke Zero Halogen design (LSZH) per Telcodria GR-347-CORE
- RoHS and REACH compliant. Lead free.
- Thermoset insulation for enhanced thermal stability
- Specially formulated insulation for superior 2 years long term water resistance
- Superior flame retardance
- Excellent mechanical properties including Abrasion, Notch Propagation, Cut Through and Heat Deformation
- Easy stripability, no separator tape over conductor
- Low friction surface for reduced pulling tension
- Can be installed in Conduit, Duct, Raceway, Aerial or Direct Burial
- Can be used in -40C to 125C applications
