Product Details

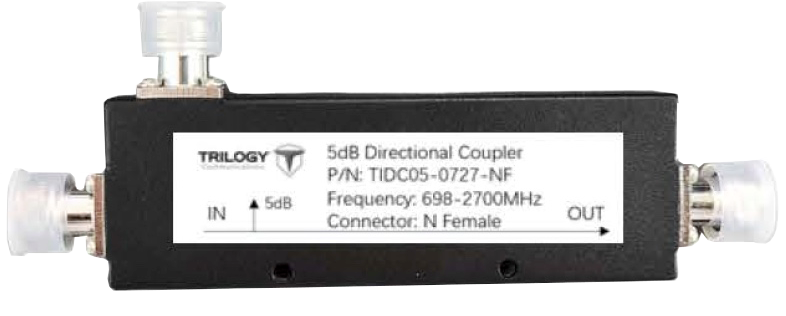

Trilogy’s directional coupler design is rated for a minimum frequency of 698 MHz and a maximum frequency of 2700 MHz. Units couple o a defined fraction of signal with minimal reflections or loss. Availability in a wide range of coupling values makes this series useful in optimizing the signal distribution required in passive distributor radio access network (D-RAN). The extremely wide frequency range allows use with multi-band antennas, leaky cable systems and wireless base stations. With minimal solder joints and a low loss dielectric, the dissipative loss has been minimized and reliability enhanced. (TIDCO5-0727-NF, TIDCO6-0727-NF, TIDCO8-0727-NF, TIDC1O-0727-NF, TIDC13-0727-NF, TIDC15-0727-NF, TIDC2O-0727-NF)
