Pre-Insulated Tubing Series 2200 m

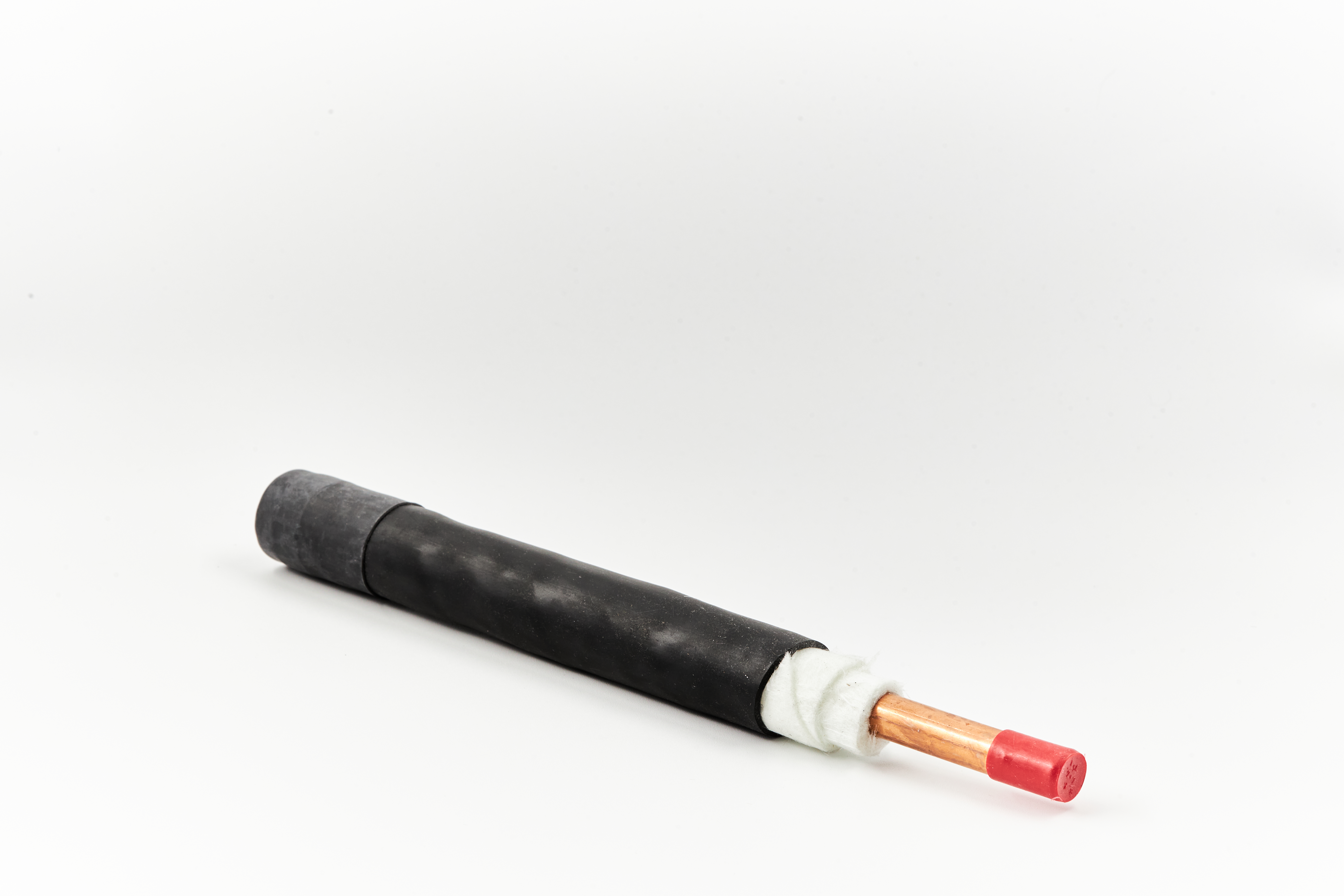

Pre Insulated 2200

Series 2200 Pre-Insulated Tubing is a thermally insulated fluid transport line suitable for steam, gas, or liquid transport.
Each line is comprised of the following elements:
• Single process tube
• Moisture resistant, non-wicking, inorganic fibrous glass thermal insulation
• Choice of weather protective jacket
The energy-efficient design provides for nominal jacket surface temperatures of 60°C or lower at 27°C ambient conditions while transporting 204°C saturated steam. Higher temperature designs for applications up to 593°C are available in product series 2210. (DU02)
