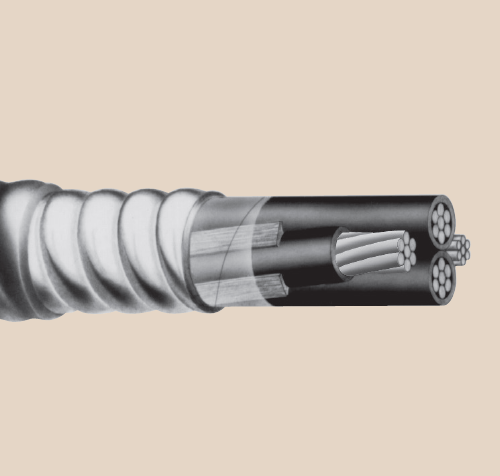

Product Details
| Property | Value |
|---|---|
| Construction - Jacket | Flame retardant polyvinyl chloride (PVC) |
| Performance Standards | Class I, Division l hazardous locations • ICEA 210,000 BTU/hr and 70,000 BTU/hr flame tests and IEEE-383 70,000 BTU/ hr flame test • ASTM D746-04 brittleness temperature impact test at -75°C • UL listed as Type CWCMC to IEEE 1580 (46 CFR Part IIl.60-23) Marine Shipboard Cable. • API-14F • ABS Recognized |
| Construction - Insulation | Cross-linked polyethylene (XLPE) |
| Construction - Ground Wire(s) | Annealed, bare copper, Class “B” strand size per NEC requirements |
| Construction - Fillers | (When required) |
| Construction - Conductor | Annealed, bare copper, Class “B” strand per ASTM B3 & B8 |
| Construction - Circuit Identification | Colored insulation per ICEA Method 1, Table E-2 |
| Construction - Binder Tape | Helically applied |
| Construction - Armor | Continuously welded and corrugated aluminum |
| Volts | 600 |
| UL Listings | NEC Type MC-HL, UL 2225 • 70,000 BTU/hr flame test, per UL 1685 and CT use • FT4’designation (flame test) • -40OC’ designation • Type CWCMC to IEEE 1580 (46 CFR Part IIl.60-23) Marine Shipboard Cable • ICEA S-95-658 and UL 44 for type XHHW-2 |
| Product Category | Control |
| CSA Listings | CSA-C22.2 No. 0,3 |
| Applications | Harsh Environment Power Control Instrumentation |
| Market Served | Oil & Gas |
| Temperature | 90ºC |
