ECP Brake Undercar

ECP Brake Cable Undercar

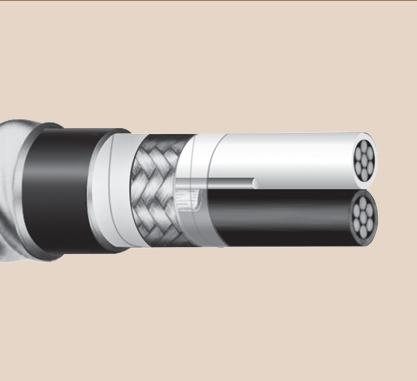

ECP Brake Cable Flexible – Undercar

AAR approved power and signal cable suitable for wiring the undercar and other fixed areas of interchange freight cars and locomotives equipped with ECP Brake Systems. This flexible armored cable is ideal for use between freight car junction boxes where the cable is routed through car structure and then attached to the car. This cable provides its own mechanical and physical protection and does NOT require the use of metal conduit or flexible liquid tight conduit. (ET47)

Army Reserve Center

The Craftsman Series pulls design inspiration from 20th century architecture, featuring a flat panel and a traditional style. This series offers a selection of ovolo profiles, simple Shaker profiles, and sleek direct glazed options, combining modern and classic elements. Grain options in this series are Fir and Smooth.

Craftsman

The Nova series features glass that is directly glazed into the door to create a seamless blend between the glass and door. The large pane glass allows the greatest views and amount of light into your home, brightening up the space and filling it with energy. Nova comes in two models: the 45 with a traditional, Craftsman sticking and the 90 with a modern, Shaker sticking. The 45 is available in Smooth and Fir grain. The 90 is available in a brushed smooth skin.

Nova

Our Smooth Doors are made with a pre-pigmented white skin; its simplicity gives a modern design and feel to any home. Our Smooth skin, incorporated with a variety of panel designs and glass options, gives a clean, minimal look to any of our fiberglass doors.

Smooth

Plastpro’s High Velocity Hurricane Zone (HVHZ) Impact Doors are engineered to withstand the force of flying objects, while maintaining all the benefits and beauty of our door aesthetic. Our Impact Doors are created, tested, and certified to meet the most stringent wind and impact code requirements in the nation.

HVHZ Impact

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Marmon Industrial Energy & Infrastructure Technical Resources

Marmon IEI works within a wide variety of industries and markets.

Request A Quote

Technical Resources

Masterformat Number

Alchemco

Manufacturer

Christie Digital

The Bilco Company

Stonepeak

Moore Co Inc

95 CSI

Rinnai America Corp

Cornell Cookson

Viessmann Digital

Tubelite

Jonti Craft

The Noble Co

Interstate Brick

MIRAGE Flooring

Armacell

Atkore International

GAF Materials

Novawall Systems, Inc.

System Level Account

Heating & Cooling Products

J&J / Invision

Armacell, LLC

Contrax (MeTEOR)

Georgia Pacific

Meteor Lighting

Draper, Inc.

Big Ass Fans/ Big Ass Solutions

Shaw Industries

Bernina Flooring

Keilhauer

Subcategory

Arconas

Davis Colors

Oldcastle Architectural

Product Line

Media Technologies

Roxul

The VMC Group

Armstrong International - Hot Water Products

Carnes Co

Karona Door

Ideal Industries Inc

Tiger Foam - Commercial Thermal Solutions Inc

Kolbe & Kolbe Millwork Co., Inc.

InPro

VIA Inc [VIA Seating]

Nanawall

Armstrong Commercial Flooring

H.E. Williams, inc.

Acutherm

Assembly Code

Penco Products, Inc.

Continental

Chief is a division of Milestone AV Technologies

Friedrich

Armstrong Medical Industries

Bard Manufacturing Co

Delray Lighting Inc.

Stepstone Inc

Knauf Insulation

USA Capitol

Moderco Inc

General Cable

Tandus-Centiva

Slant Fin

Armstrong International

ClimaCool

AmTab Manufacturing Corp

Power-Strut®

Owens Corning

NexLight

Caleffi

Coronet, Inc

Schott North America

Schneider Electric USA Inc

National Office Furniture, Inc.

Tarkett

Kimball Office

Prudential Lighting

Cardinal Detecto

Jeld-Wen, Inc.

American Gypsum

Tankless Inc.

Behavioral Safety Products

Saint-Gobain: CertainTeed Insulation

Sico Inc

Simonton Windows

ALPOLIC/Mitsubishi Plastics Composites America

Wheatland Tube Company

Test - Jordan Test Account

Hunter Douglas

Muzo

Excel Dryer

Smith System

Maxxon Corp

Paragon

Alumni Classroom Furniture

Property	Value
Construction - Conductor	#8 AWG (37/24) stranded tinned copper per ASTM B-33
Construction - Braid Shield:	#34 AWG tinned copper with an 85% minimum coverage
Construction - Insulation	Cross-linked polyolefin (Exane®)
Construction - Shield/Drainwire	#16 AWG stranded tinned copper, spirally applied
Construction - O.D.	0.725 +/- 0.025 inch
Performance Standards	AAR Specification S-4210 – Performance specification (August 2014) • ASTM B-33 • ICEA S-95-658 X-2 • MIL-C-13777
Volts	600
UL Listings	UL 1581
Construction - Separator Tape	Polyester tape
Construction - Jacket	Low temperature heavy duty neoprene reinforced per MIL-C-13777
Construction - Impedance	50 +/- 5 ohm
Construction - Color Code	(1) Black, (1) White
Construction - Armor (optional)	Flexible Galvanized Steel Interlocked Armor (GSIA) OD: 0.98 +/- 0.010 inch
Applications	(E)Mobility
Temperature	90ºC
Product Category	Power, Signal
Market Served	Rollingstock

Product Details

ECP Brake Cable Flexible – Undercar
