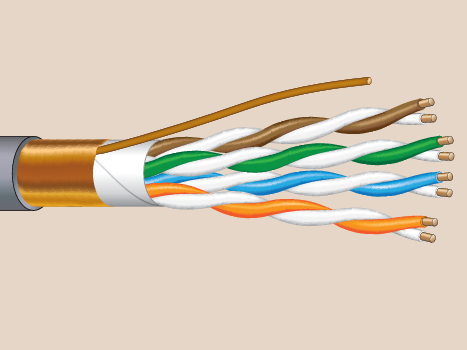

CAT-RAD® 5e

CAT-RAD® 5e cable is a thermoset nuclear grade category 5e communications cable designed specifically for applications in nuclear plants and like environments. It offers proven support for gigabit ethernet applications and broadband video.
CAT-RAD 5e cable is intended for use in harsh and demanding areas offering radiation resistance and 60 years of life at 65°C. (NU01)

CAT-RAD® 5e Communications Cable

Lake House

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Material

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Property	Value
Construction - Conductor	Annealed solid 24 AWG bare copper to ASTM B3
Construction - Circuit Identification	Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
Construction - Binder Tape	Flame retardant binder
Volts	300
Performance Standards	• ETL qualified to TIA 568-C.2 • 10 CFR 50 Appendix B quality assurance program • Insulation and jacket in accordance with ICEA standards • IEEE 383-1974 70,000 BTU/hr vertical tray flame test as modified by NRC Reg. Guide RG 1.131 • IEEE 1202 70,000 BTU/hr vertical tray flame test
Construction - Shield/Drainwire	Copper/Polyester foil with 24 AWG drainwire (shielded designs only)
Construction - Pair Assembly	4 pairs cabled
Construction - Jacket	Proprietary thermoset material
Construction - Insulation	Proprietary nuclear qualified cross linked polyethylene (XLPE)
Product Category	Communications
Applications	Harsh Environment Power Control Instrumentation
Temperature	65ºC
Market Served	Nuclear
