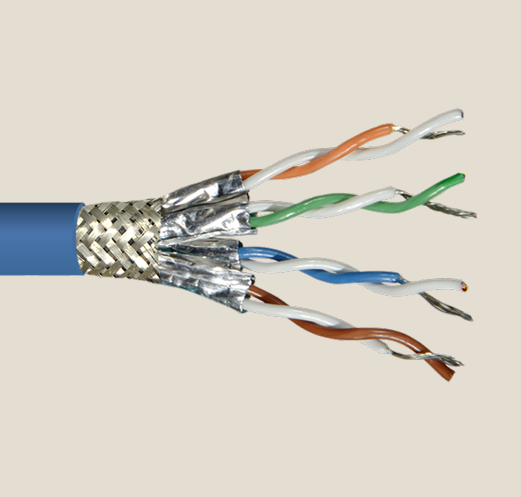

CAT 7 4 Pairs

CAT 7 4 Pairs 24 AWG Train car applications NFPA 130 Compliant

Exane® CAT 7 TD-010230 is designed to operate on train cars, LRV, and people mover applications. It employs a low smoke halogen free insulation and thermoset jacket compounds. The thermoset material provides superior resistance to abrasion, fire and moisture. The cable complies with train cars specifications such as NFPA 130, ICEA S-19-81, ASTM E662, BSS 7239 and parts of RP-585. (ET58)

Exane® CAT 7 4 Pairs 24 AWG, Train car applications NFPA 130 Compliant

Closet 2

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Markets

Volts

Product Category

Tubing Type

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Property	Value
UL Listings	Passes UL 1685 flame test with IEEE 1202/FT4 Flame Method and smoke measurement
Performance Standards	Passes the spread of fire and smoke emissions test requirements for low voltage wire and cable in accordance with NFPA 130-2017 Article 8.6.7.1.1 for transit vehicle application
Construction - Pairs	Two Conductors twisted together with a foil shield
Construction - Outer Jacket	Dark Blue, Cross-Linked Low Smoke Halogen Free Jacket
Construction - Insulation	Foam PE Low Smoke Halogen Free insulation
Construction - Core Assembly	Four twisted pairs cabled together
Product Category	Communications, Signal
Construction - Conductor	Stranded Tin Copper 24 AWG (7/32)
Construction - Braid	36 AWG, Tin Copper
Applications	(E)Mobility
Market Served	Rollingstock
Temperature	90ºC

Product Details

Exane® CAT 7 4 Pairs 24 AWG, Train car applications NFPA 130 Compliant
