Thermocouple Extension Cable Single Pair Shielded (Silicone Rubber)

Firewall SR Single

Firewall® SR Thermocouple Extension Cable is a silicone rubber insulated construction specifically designed for high temperature applications within nuclear generating facilities. It is intended for use in harsh and demanding environments where temperature extremes preclude the use of standard cables. It may be installed in trays, ducts, conduits or in confined spaces such as equipment housings. Designed for use on circuits where shielding from external electrostatic interference is not required. (NU11_A)

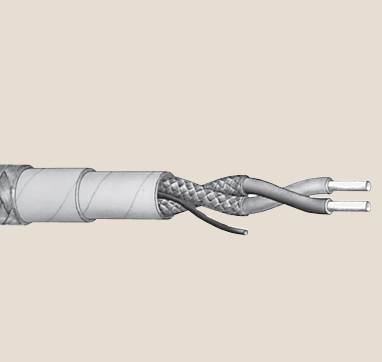

Firewall® SR Thermocouple Extension Cable Single Pair Shielded (Silicone Rubber)

Closet 2

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Markets

Volts

Product Category

Tubing Type

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Property	Value
Construction - Conductor	Solid alloys per ANSI MC 96.1 (Extension Grade, standard limits of error)
Construction - Circuit Identification	Individual single conductors color coded to ANSI requirements by means of colored braids
Construction - Binder Tape	Helically applied polyester
Volts	600
Performance Standards	ICEA S-19-81 • IEEE 383-1974 and IEEE 323-1974 (RSCC Report QR-8802) • IEEE 383-1974 70,000 BTU/hr vertical tray flame test as modified by NRC Reg. Guide 1.131 • MC 96.1 • ICEA T-29-520 210,000 BTU/hr vertical tray flame test • SIEEE 383-1974 para. 2.5.6 (ICEA S-19-81 Section 6.19.6) • 10 CFR 50 Appendix B
Construction - Pair Assembly	Two insulated and braided conductors twisted with a flexible strand, tin-coated copper drain wire and a helically applied aluminum/polyester laminated tape shield
Construction - Overall Covering	Rockhide� braid* with high temperature finish
Construction - Insulation	Proprietary heat, moisture and radiation resistant silicone rubber
Construction - Fillers	As applicable
Construction - Covering	Glass braid with high temperature finish
Product Category	Thermocouple
Applications	Harsh Environment Power Control Instrumentation
Market Served	Nuclear
Temperature	125ºC

Product Details

Firewall® SR Thermocouple Extension Cable Single Pair Shielded (Silicone Rubber)
