FW LSZH Inst Cable

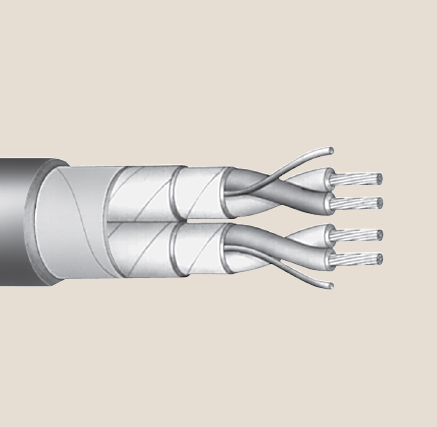

Firewall® LSZH Instrumentation Cable

Firewall® LSZH is a totally low smoke, zero halogen cable comprised of both thermoset insulation and jacket material. It provides superior resistance to fire and moisture. It may be installed in wet and dry locations, indoors and outdoors, in metal trays, conduits, ducts, or in direct burial applications. It is ideal for applications in transit systems and tunnels to perform a variety of control and related functions. Designed for use on circuits where shielding from external electrostatic interference is required. (ET21)

AGT Test Submittal - 25-1202

ACFoam® - HD CoverBoard

online-ACFoam-HD-CoverBoard

Manufactured and tested for use in new and re-roofing applications. ACFoam®-HD CoverBoard is used in mechanically attached single-ply, fully adhered single-ply, and self-adhered “peel & stick” roofing systems.

Atlas Nail Base Fastener-Heavy Duty

online-fast-hd

Nailable Insulation Fastener with #4 Heavy Duty Drill Point specially engineered for attaching Atlas ACFoam® Nail Base and ACFoam® CrossVent® to thick steel substrates.

EnergyShield® CGF

Atlas EnergyShield CGF (formerly Rboard®) is composed of a closed cell polyisocyanurate (polyiso) foam core, faced with a non-reflective coated glass-mat facer on both sides. The blowing agent used to produce the polyiso foam core does not contain any CFCs, HCFCs or HFCs. EnergyShield CGF has zero Ozone Depletion Potential (ODP) and negligible Global Warming Potential (GWP). Atlas EnergyShield CGF combines high R-value, enhanced durability from two coated glass-mat facers, and water resistive attributes in a high performance rigid Wall insulation. EnergyShield CGF is suitable for a variety of continuous insulation (CI) applications.

FR-10

A coated-glass fiber mat specifically designed for installation over wood decks or certain combustible insulation that enhances the overall fire performance of conventional commercial roof systems, including metal roofs.

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Markets

Volts

Product Category

Tubing Type

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Marmon Industrial Energy & Infrastructure Technical Resources

Marmon IEI works within a wide variety of industries and markets.

Request A Quote

Technical Resources

Alchemco

Christie Digital

The Bilco Company

Stonepeak

Moore Co Inc

Rinnai America Corp

Cornell Cookson

Viessmann Digital

Tubelite

Jonti Craft

The Noble Co

Interstate Brick

MIRAGE Flooring

Armacell

Atkore International

GAF Materials

Novawall Systems, Inc.

System Level Account

Heating & Cooling Products

J&J / Invision

Armacell, LLC

Contrax (MeTEOR)

Georgia Pacific

Meteor Lighting

Draper, Inc.

Big Ass Fans/ Big Ass Solutions

Shaw Industries

Bernina Flooring

Keilhauer

Arconas

Davis Colors

Oldcastle Architectural

Media Technologies

Roxul

The VMC Group

Armstrong International - Hot Water Products

Carnes Co

Karona Door

Ideal Industries Inc

Tiger Foam - Commercial Thermal Solutions Inc

Kolbe & Kolbe Millwork Co., Inc.

InPro

VIA Inc [VIA Seating]

Nanawall

Armstrong Commercial Flooring

H.E. Williams, inc.

Acutherm

Penco Products, Inc.

Continental

Chief is a division of Milestone AV Technologies

Friedrich

Armstrong Medical Industries

Bard Manufacturing Co

Delray Lighting Inc.

Stepstone Inc

Knauf Insulation

USA Capitol

Moderco Inc

General Cable

Tandus-Centiva

Slant Fin

Armstrong International

ClimaCool

AmTab Manufacturing Corp

Power-Strut®

Owens Corning

NexLight

Caleffi

Property	Value
Construction - Binder Tape	Helically applied polyester
Construction - Circuit Identification	Printed numbers per ICEA Method 4. (Alt. colors available upon request)
Construction - Conductor	Annealed, tin-coated copper, class “B” strand (ASTM B-8 & B-33)
Construction - Fillers	(Where required)
Volts	600
Construction - Overall Shield System	Helically applied aluminum/polyester laminated tape shield in continuous contact with flexible strand tin-coated copper drain wire
Construction - Shield System	Helically applied aluminum/polyester laminated tape shield in continuous contact with flexible strand tin-coated copper drain wire
Construction - Jacket	Reduced wall, black, flame retardant crosslinked low smoke zero halogen polyolefin
Construction - Insulation	Flame retardant low Smoke Zero Halogen crosslinked polyolefin
Product Category	Instrumentation
Applications	Harsh Environment Power Control Instrumentation
Market Served	Transit
Temperature	90ºC

Product Details

Firewall® LSZH Instrumentation Cable
