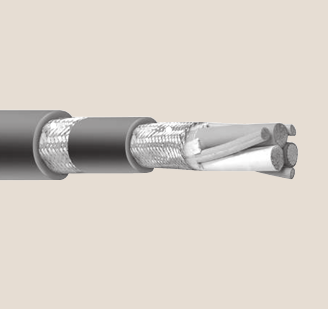

Product Details
| Property | Value |
|---|---|
| Applications | Harsh Environment Power Control Instrumentation |
| Construction - Conductor | Flexible, soft annealed tinned copper per ASTM B33 & IEEE 1580 |
| Construction - Armor (optional) | Bronze Braid – Standard. Tinned Copper Braid – Optiona |
| Construction - Fillers | Flame retardant Polypropylene |
| Construction - Insulation | Irradiation cross-linked Polyolefin, Exane® |
| Construction - Inner Jacket | Black, Irradiation cross-linked Hypalon® (CSPE). Sunlight Resistant. |
| Construction - Shield | Optimized T.C. braid + Foil Tape with 100% coverage |
| Construction - Outer Jacket | Black, Irradiation cross-linked Hypalon® (CSPE). Sunlight Resistant. |
| Construction - Temperature Rating | Marmon IEI rated 125˚C, UL/CSA 110˚C, IEEE 100˚C |
| Construction - Color Code | As specified by customer. Standard – Dk. Gray, White, Red. Grounds – Green |
| CSA Listings | CSA Type X110 • Listed as Marine Shipboard Cables |
| Market Served | Oil & Gas, Clean Energy |
| Performance Standards | IEEE 45.8/1580 • IEEE 1202 & FT-4, 70,000 Btu/hr Vertical Tray Flame Tests • IEC 60332-3-22 Category A/F Flame Test • Type Approved • Armored and Sheathed cables - Class 1, Div 1 and Zone 1 hazardous locations • Unarmored cables - Class 1, Div 2 & Zone 2 • IEC 61892-4-Annex D • NEK 606 |
| Product Category | Control |
| Temperature | 110ºC |
| UL Listings | UL Type X110 • Listed as Marine Shipboard Cables |
| Volts | 1000 |
