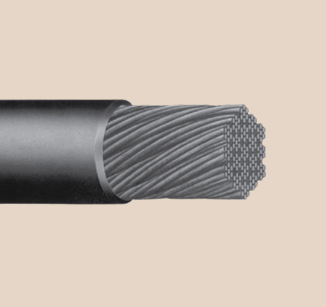

Rock-Tuff K® 125°C Single Conductor Power

ROCKFLEX® COP L2 Central Office Power

Rock-Tuff® COP is a single conductor,
power cable utilizing flexible Class I
conductor. Its tough LSZH thermoset
construction allows for its use in Central
Office Power (COP) applications. The
wire intended use is for 600/1000V AC
or DC applications in Central Offices
(COs), Outside Plant (OSP) remote
terminals, Customer Premises and
Building Entrance Terminals (BETs) and
cell towers and data centers. The wire is
approved by Telcordia to GR-347-Core
“Generic Requirements for
Telecommunications Power Cable”
Central Office Power (COP). LSZH
insulation is preferred for highly
occupied environments or areas with
large concentrations of equipment. (IN17)


Rock-Tuff® COP L2 Industrial Power Cable
