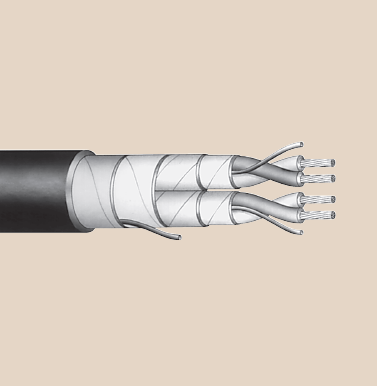

Rock-Tuff® Instrumentation Cable Multi-Shielded Pairs with Overall Shield (XLPO-CSPE)

Rock-Tuff® Instrumentation Cable Multi-Shielded Pairs with Overall Shield

Rock-Tuff® Industrial Instrumentation
Cable is a totally thermoset construction
specifically designed for reliable
performance under harsh conditions in
industrial applications. It may be installed
in trays, ducts, conduits or in direct
burial applications to perform a variety
of low voltage power, lighting and related
functions. Designed for use on circuits
where shielding from external electrostatic
interference and between pairs is critical. (IN10)

Rock-Tuff® Instrumentation Cable Multi-Shielded Pairs with Overall Shield (XLPO/CSPE)
