Product Details
| Property | Value |
|---|---|
| Applications | Harsh Environment Power Control Instrumentation |
| Construction - Armor (optional) | Bronze Braid – Standard. Tinned Copper Braid – Optional |
| Construction - Binder Tape | Non-hygroscopic and non-wicking |
| Construction - Color Code | As specified by customer |
| Construction - Conductor | Flexible, soft annealed tinned copper per ASTM B33 & IEEE 1580 |
| Construction - Fillers | When required, flame retardant and non-hygroscopic |
| Construction - Foil Shields | Aluminum/Polyester foil tape + tinned copper drain wire |
| Construction - Inner Jacket | Black, Heavy Duty, Arctic Grade Neoprene. Sunlight resistant |
| Construction - Insulation | Irradiation cross-linked Polyolefin, Exane® 125˚C |
| Construction - Outer Jacket | Black, Heavy Duty, Arctic Grade Neoprene. Sunlight resistant |
| Construction - Temperature Rating | Marmon IEI rated 125˚C, UL/CSA 110˚C, IEEE 100˚C |
| CSA Listings | CSA C22.2 No. 245 X110 Marine Shipboard |
| Market Served | Oil & Gas, Clean Energy |
| Product Category | Power |
| Temperature | 125ºC |
| UL Listings | UL 1309 X110 Marine Shipboard Cable |
| Volts | 600 |

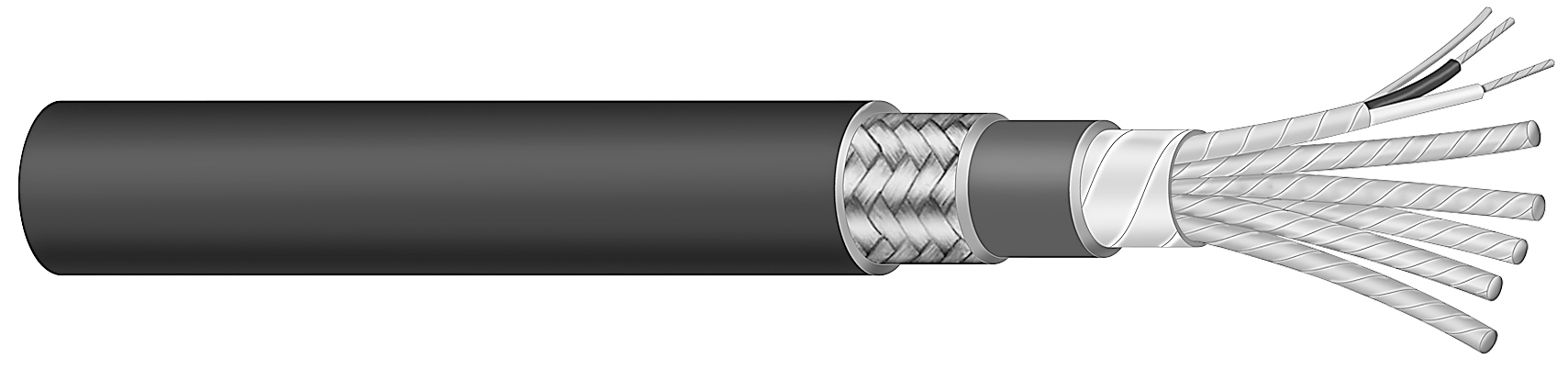

| Performance Standards | IEEE 45/1580 Type P • Intertek Testing Service (ETL) certified as Type P • IEEE 1202 & FT-4 70,000 Btu/hr Vertical Tray Flame Tests • IEC 60332-3-22 Category A/F Flame Test • Type Approved by ABS, DNV GL and Lloyd’s Register NA Scope Exane® 125 Type P multi-shielded pairs with overall foil shields, Marine Shipboard Cables, armored and unarmored, rated 1KV are an extremely tough construction ideally suited for use in rugged marine/ oil rig applications. The Exane® insulation is radiation crosslinked and provides outstanding physical properties, resistance to abrasion, cut-through, low and high temperatures,petrochemical fluids, sunlight, f lame, and moisture. Exane® 125 Type P is extremely tough and durable and withstands the arduous environmental conditions experienced in offshore mobile drilling units (MODU), FPSO’s, TLP’s and land rigs for oil and gas drilling rigs. Exane® 125 Type P’s 125˚C temperature rating for short durations lends itself to handle higher ampacity levels and higher safety margins in the field. It’s extremely flexible design and tightly controlled dimensions lead to benefits regarding lower weight, tray fill, ease of installation and long service life in drag chains. • Armored & Sheathed cables are suitable for use in Class 1, Division 1 an Zone 1 hazardous locations • Unarmored cables are suitable for use in Class 1, Division 2 and Zone 2 hazardous locations |
