Property	Value
Construction - Cabling	Pairs Cabled Together, core filled with waterblock gel
Construction - Conductor	24 AWG Solid Bare Copper
Construction - Flooding Compound	Waterblock Gel
Construction - Insulation	Polyethylene
Construction - Jacket	Polyethylene
Performance Standards	ETL Verified ANSI/TIA-568.2-D • ICEA S-90-661 • RoHS Compliant
Volts	300
Product Category	Communications, Datacom
Applications	Harsh Environment Telecom
Market Served	Commercial Infrastructure
Temperature	80ºC

Product Details

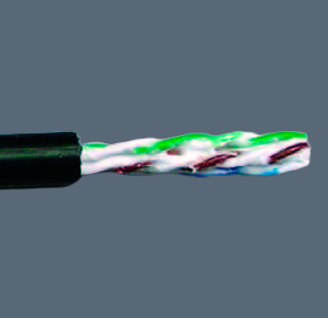

COM-Link® Category 5e OSP Cable

Applications

Description

Features

Data Sheet
