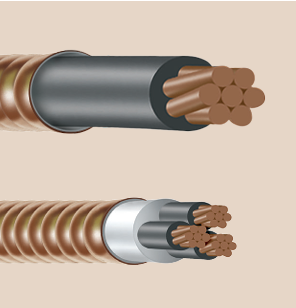

VITALink® RC90 is a 600V 2-hour
fire rated cable listed to ULC S139
with hose stream. When installed per
systems FHIT7 120, 120A, and 60,
plus the CEC, VITALink RC90 meets
the code requirements for 2-hour Fire
Rated Circuits, Electrical Circuit Integrity
Systems, Survivability and Circuit
Integrity. VITALink RC90 Cables offer
lowered cost, reliability and ease of
installation advantages over MI cable
and other methods of providing fire rated
circuits.
The equipment grounding copper armor
is terminated with commercially available
brass MC/RC connectors and the cable
connections are made without the need
for splicing or use of special tools.
Compared to Mineral Insulated (MI)
cable, VITALink RC90 is not exposed
to costly field expenses in preparing
cable ends, special panel penetrations,
additional flexible terminations and the
splicing of shorter lengths in longer
runs. VITALink RC90 is not susceptible
to failures caused by moisture ingress
through leaky seals or faulty storage. (VC02-VITALink)
- Up to 2-hour fire resistance
- Splice available
- Superior resistance to flame propagation
- Only conventional tools required to terminate
- Commercially available brass/stainless steel connectors
- Printed number coding allows for easy identification (ICEA Method 4)
- Labor savings on termination, installation, and handling
- Superior impact & crush resistance
- Low smoke, low toxicity, halogen free design
- Welded armor forms an impervious barrier
- Flexible
- Copper sheath can be used for equipment bonding exceeding CEC Rule 10-618 and 10-804
- Long continuous lengths available
- Multiple sizes and conductor counts available
- VFD cable design available
