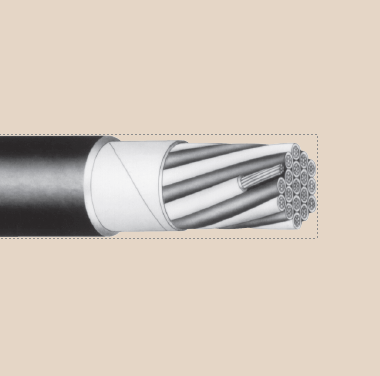

Rock-Tuff®  Instrumentation Cable Multi-Conductor Unshielded (XLPE-CSPE)

Rock-Tuff® Industrial Cable Instrumentation Cable Multi-Conductor Unshielded XLPE CSPE

Rock-Tuff® Industrial Instrumentation
Cable is a totally thermoset construction
specifically designed for reliable
performance under harsh conditions in
industrial applications. It may be installed
in trays, ducts, conduits or in direct
burial applications to perform a variety of
low voltage power, lighting and related
functions. Designed for use on circuits
where shielding from external electrostatic
interference is required but shielding
between pairs is not critical. (IN07)

Rock-Tuff®  Instrumentation Cable Multi-Conductor Unshielded (XLPE/CSPE)

Scotch Plain

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Material

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Marmon Industrial Energy & Infrastructure Technical Resources

Marmon IEI works within a wide variety of industries and markets.

Request A Quote

Technical Resources

Alchemco

Christie Digital

The Bilco Company

Stonepeak

Moore Co Inc

Rinnai America Corp

Cornell Cookson

Viessmann Digital

Tubelite

Jonti Craft

The Noble Co

Interstate Brick

MIRAGE Flooring

Armacell

Atkore International

GAF Materials

Novawall Systems, Inc.

System Level Account

Heating & Cooling Products

J&J / Invision

Armacell, LLC

Contrax (MeTEOR)

Georgia Pacific

Meteor Lighting

Draper, Inc.

Big Ass Fans/ Big Ass Solutions

Shaw Industries

Bernina Flooring

Keilhauer

Arconas

Davis Colors

Oldcastle Architectural

Media Technologies

Roxul

The VMC Group

Armstrong International - Hot Water Products

Carnes Co

Karona Door

Ideal Industries Inc

Tiger Foam - Commercial Thermal Solutions Inc

Kolbe & Kolbe Millwork Co., Inc.

InPro

VIA Inc [VIA Seating]

Nanawall

Armstrong Commercial Flooring

H.E. Williams, inc.

Acutherm

Penco Products, Inc.

Continental

Chief is a division of Milestone AV Technologies

Friedrich

Armstrong Medical Industries

Bard Manufacturing Co

Delray Lighting Inc.

Stepstone Inc

Knauf Insulation

USA Capitol

Moderco Inc

General Cable

Tandus-Centiva

Slant Fin

Armstrong International

ClimaCool

AmTab Manufacturing Corp

Power-Strut®

Owens Corning

NexLight

Caleffi

Property	Value
Volts	600
Construction - Insulation	Proprietary heat, moisture and flame retardant crosslinked polyethylene
Construction - Fillers	(When required)
Construction - Circuit Identification	Colored insulation per ICEA Method 3, Table E2
Construction - Binder Tape	Black, heavy-duty chlorosulfonated polyethylene (also available in neoprene)
Construction - Jacket	Black, heavy-duty chlorosulfonated polyethylene (also available in neoprene)
Construction - Conductor	Annealed, tin-coated copper, Class “B” strand (ASTM B-8 & B-33)
UL Listings	90°C applications in both wet & dry locations • Type TC for cable tray installations (UL 1277)
Performance Standards	ICEA Standard S-95-658 • ICEA Standard S-95-658 for heavy-duty chlorosulfonated polyethylene (CSPE) • IEEE 1202/FT4 Flame Test •ICEA S-19-81 Section 6.19.6 • NEC Code (approved for Class 1, Division 2 hazardous locations)
Product Category	Instrumentation
Applications	Harsh Environment Power Control Instrumentation
Market Served	Mining & Industrial OEM
Temperature	90ºC

Product Details

Rock-Tuff® Instrumentation Cable Multi-Conductor Unshielded (XLPE/CSPE)
