Product Details
| Property | Value |
|---|---|
| Volts | 600 |
| UL Listings | Cable passes IEEE-1202 vertical tray flame test with Low Smoke per UL 1685 |
| Performance Standards | Jacket is in accordance with ICEA T-33-655 for Low Smoke Halogen Free Polymetric Jackets |

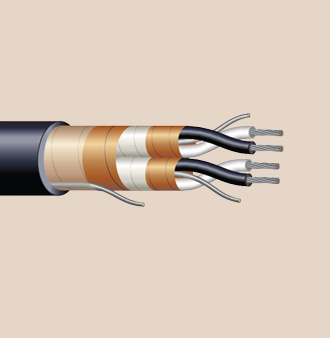

| Construction - Pair Assembly | Two insulated conductors twisted with a flexible strand tin-coated copper drain wire, a helically applied copper/ polyester laminated tape shield, and an isolation tape |
| Construction - Overall Shield System | Helically applied copper/polyester laminated tape shield in continuous contact with a flexible strand tin-coated copper drain wire |
| Construction - Jacket | Colorable LSHF thermoset polyolefin |
| Construction - Insulation | Proprietary thermoset, heat, moisture, ozone, and radiation resistant flame retardant High Durometer (HD) Silicone |
| Construction - Fillers | As applicable |
| Construction - Conductor | Annealed, tin-coated copper, Class “B” strand (ASTM B8 & B33) |
| Construction - Circuit Identification | One black and one white insulated conductor in each pair with printed pair numbers on both singles for pair identification |
| Construction - Cabling | Required number of pairs cabled together |
| Product Category | Instrumentation |
| Construction - Binder Tape | Helically applied |
| Class | Class 1E Nuclear |
| Market Served | Nuclear |
| Temperature | 90ºC |
| Applications | Harsh Environment Power Control Instrumentation |
