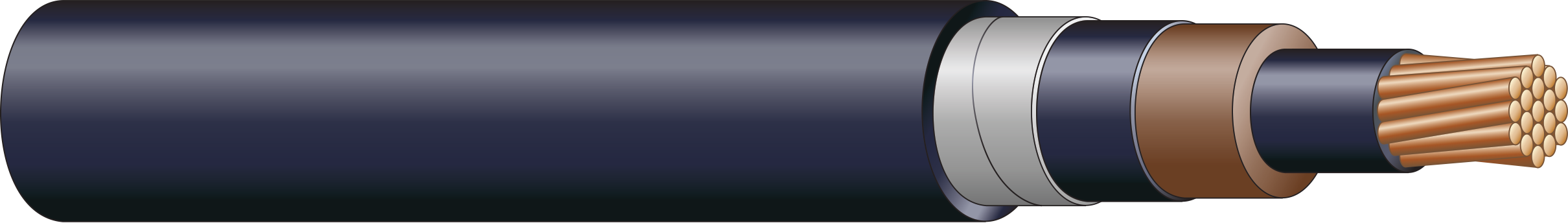

Kerite MV Power Cable 5-35kV(tin)

This specification describes copper conductor, copper tape shielded, power cables having Ethylene Propylene Rubber (EPR) insulation and a Polyvinyl Chloride (PVC) jacket. The cable is designed for use in three-phase systems with voltage not exceeding 15,000 volts phase to phase and conductor temperatures not exceeding 105°C for normal operation, 140°C for emergency overload conditions, and 250°C for short circuit conditions. The cables are sunlight resistant and are suitable for direct burial, cable tray use, and installation in ducts.

Kerite® Medium Voltage Cable 15kV

B1 - ProjTest a4k 25-0807

Series 2000 Lift & Slide Door

Series 2000 e

Series 2000 d

Series 2000 c

Series 2000 b

Series 2000 a

The Skyline Series 2000 Lift & Slide Door features a handle that rotates 180 degrees, lifting the operable sash off the tracks to disengage the weather-stripping and allow for extremely low friction operation.  This feature sets the Series 2000 apart from competitors.

Employing multi-lock hardware, the handle controls multiple locking points and provides ease of operation combined with high performance and resistance to tampering. While most sliding doors typically use a friction seal, ours has a compression seal which allows the door to have a low sill while maintaining high sill performance.

Whether applied in a high-rise, townhouse, or suburban home, the Skyline Series 2000 Lift & Slide door will surely exceed your expectations.

Series 97 Window Wall - Outswing Casement - Fixed

97 Window Wall e

97 Window Wall d

97 Window Wall c

97 Window Wall b

97 Window Wall a

Skyline Windows’ 97 Series of window wall products offer a variety of depth and configurations to meet each
project’s aesthetic and performance needs with combinations of fixed lights, out-swing vents and/or awning
vents as required by design. Skyline Windows’ 1700 Series terrace doors can be seamlessly incorporated into
the window wall system to provide access to balconies,
terraces, or roof-top amenity spaces.

Series DL97 - Outswing Casement

DL97 e

DL97 d

DL97 c

DL97 b

DL97 a

Skyline’s Series 97 window provides exceptional performance with narrow and elegant sightlines that reference the aesthetic of historic steel sash windows.  Designed for both retrofit and new construction, the Series 97 is appropriate for commercial and residential use.

This window meets and exceeds today’s demanding requirements through the use of structural glazing, Insulbar thermal-strut technology, and European style multipoint hardware; yielding superior air, water, thermal and acoustic results.  Whether manufactured for a punched window or a window wall application, the Series 97 provides the design flexibility necessary to meet the aesthetic and performance requirements of your project.

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Property	Value
Product Category	Power, Medium Voltage Power
Volts	15kV
Temperature	105°C
Applications	Harsh Environment Power Control Instrumentation
Construction - Conductor	Non-Filled Compact Copper
Construction - Conductor Shield	Kerite® nonconducting shield
Construction - Insulation	Kerite® DR-EPR
Construction - Insulation Shield	Semiconducting Thermoset
Construction - Metallic Shield	Bare Copper Tape Metallic Shield
Construction - Barrier Tape	Flame barrier tape(s)
Construction - Jacket	PVC Jacket-Black
Performance Standards	Designed and tested in accordance with ICEA S-97-682 and AEIC CS-8 • Kerite® cables meet ICEA S-93-639 for medium voltage cables with tape shield • Designed and tested in accordance with UL 1072 • Cable components, raw materials, and testing procedures shall meet the requirements of publications referenced in relevant parts of ASTM and ICEA standards
