Product Details

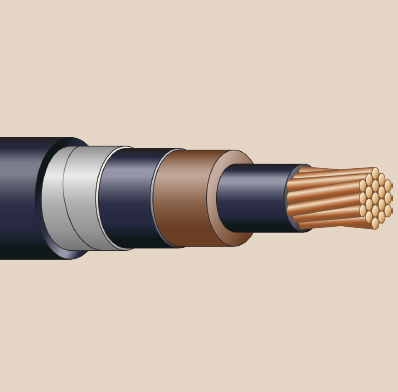

PermaLife® Shielded Medium Voltage Power Cable 5-35kV Discharge Resistant Kerite Insulation System
Brand
PermaLife®
Description
PermaLife® medium voltage is a jacketed single conductor power cable designed for applications in Nuclear Power Generating Plants and Substations. It is intended for use in harsh and demanding environments and qualified for Class 1E applications (LOCA Qualified). It may be installed indoors or outdoors in trays, ducts, conduits, direct burial, or aerial applications to perform a variety of power functions. (NU16_A)
Features
- Permashield non-conducting stress control layer
- Kerite discharge resistant insulation system
- Helically applied tinned copper tape shield
- See data sheet for more features
| Property | Value |
|---|---|
| Class | Class 1E Nuclear |
| Construction - Barrier Tape | Flame barrier tape(s) |
| Concstruction - Metallic Shield | 5 mil helically applied tinned copper tape with 20% overlap |
| Construction - Jacket | Hypalon Black heavy-duty chlorosulfonated polyethylene (HD-CSPE) |
| Construction - Insulation Shield | Thermoset semiconducting layer |
| Construction - Insulation | Proprietary Kerite discharge resistant insulation |
| Construction - Conductor Shield | Permashield conductor shield (non-conducting stress control layer) |
| Construction - Conductor | Bare copper (tinned copper also available), class “B” compressed strand (compact strand also available) |
| Product Category | Nuclear |
