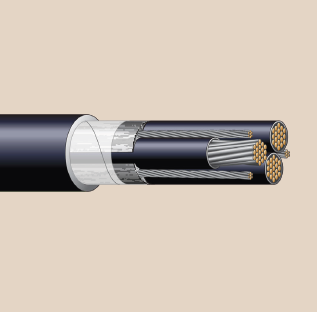

Firewall® LSHF Safety Class Power Cable

Firewall® LSHF Safety Class Control Cable

RSCC’s Firewall® LSHF control cable is a completely thermoset construction specifically designed for low smoke halogen free applications in utility generating plants and substations. It is intended for use in harsh and demanding environments, including Class 1E nuclear applications. It may be installed in trays, ducts, conduits or in direct burial applications to perform a variety of low voltage control and related functions. (NU19_B)

Firewall® LSHF Safety Class Control Cable (HD-SR/LSHF)

Closet 2

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Markets

Volts

Product Category

Tubing Type

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Property	Value
Volts	600
UL Listings	Cable passes IEEE-1202 vertical tray flame test with Low Smoke per UL 1685
Performance Standards	Jacket is in accordance with ICEA T-33-655 for Low Smoke Halogen Free Polymetric Jackets
Construction - Jacket	Colorable LSHF thermoset polyolefin
Construction - Insulation	Proprietary thermoset, heat, moisture, ozone, and radiation resistant flame retardant High Durometer (HD) Silicone
Construction - Fillers	As applicable
Construction - Conductor	Annealed, tin-coated copper, Class “B” strand (ASTM B8 & B33)
Construction - Circuit Identification	Insulation per ICEA Method 4, Black colored insulation with printed numbers
Construction - Binder Tape	Helically applied
Product Category	Control
Class	Class 1E Nuclear
Applications	Harsh Environment Power Control Instrumentation
Market Served	Nuclear
Temperature	90ºC

Product Details

Firewall® LSHF Safety Class Control Cable (HD-SR/LSHF)
