Product Details
| Property | Value |
|---|---|

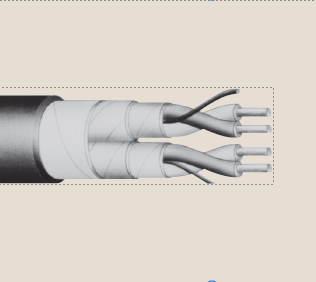

| Construction - Pair Assembly | Two insulated conductors twisted with a flexible strand, tin-coated copper drain wire, a helically applied aluminum/polyester laminated tape shield and an isolation tape |
| Construction - Jacket | Hypalon heavy-duty chlorosulfonated polyethylene (HD-CSPE) colors to ANSI standard by type |
| Construction - Insulation | Proprietary heat, moisture and radiation resistant flame retardant crosslinked polyethylene |
| Construction - Fillers | As applicable |
| Construction - Conductor | Solid alloys per ANSI MC 96.1 (Extension Grade, standard limits of error) |
| Construction - Cabling | Required number of pairs cabled together |
| Construction - Binder Tape | Helically applied polyester |
| Construction - Circuit Identification | Individual pair single conductors color coded to ANSI requirements by means of pigmented insulation with printed pair numbers on both singles for pair identification |
| UL Listings | UL 1277 • 90°C wet & dry locations • UL VW-1 |
| Product Category | Thermocouple |
| Performance Standards | Insulation ICEA S-66-524 • Jackets ICEA S-19-81 for Hypalon (CSPE) • Class 1E qualified IEEE 383-1974 and IEEE 323-1974 • IEEE 383-1974 70,000 BTU flame test as modified by NRC Reg. Guide 1.131 • ICEA T-29-520 210,000 BTU • IEEE 383-1974 para. 2.5.6 (ICEA S-19-81 Section 6.19.6) • ANSI standard MC 96.1 • 10 CFR 50 Appendix B • 40 CFR, Part 261 |
| Volts | 600 |
| Applications | Harsh Environment Power Control Instrumentation |
| Market Served | Nuclear |
| Temperature | 90ºC |
