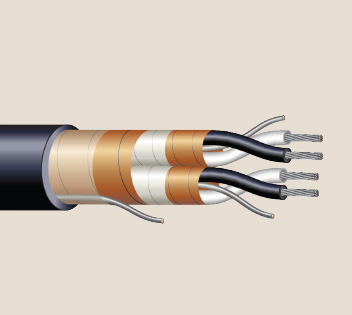

X-Link® TC Instrumentation Cable Multi-Shielded Pairs With Overall Shield

X-Link® TC is the smallest thermoset, UL listed, Type TC Instrumentation cable available in the industry today. X-Link® TC is 30% to 40% smaller in diameter than standard 600 volt cable. It may be installed in wet and dry locations, indoors and outdoors, in metal trays, ducts, conduits, or in direct burial applications. It is ideal for applications in substations, cogeneration, waste/energy and industrial facilities to perform a variety of signaling, data acquisition and monitoring functions. Designed for use on circuits where complete isolation is required between pairs and from external interference. (NU20_D)

X-Link® TC Instrumentation Cable Multi-Shielded Pairs With Overall Shield (XLPO/LSZH-XLPO)

Lake House

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Material

The Craftsman Series pulls design inspiration from 20th century architecture, featuring a flat panel and a traditional style. This series offers a selection of ovolo profiles, simple Shaker profiles, and sleek direct glazed options, combining modern and classic elements. Grain options in this series are Fir and Smooth.

Craftsman

The Nova series features glass that is directly glazed into the door to create a seamless blend between the glass and door. The large pane glass allows the greatest views and amount of light into your home, brightening up the space and filling it with energy. Nova comes in two models: the 45 with a traditional, Craftsman sticking and the 90 with a modern, Shaker sticking. The 45 is available in Smooth and Fir grain. The 90 is available in a brushed smooth skin.

Nova

Our Smooth Doors are made with a pre-pigmented white skin; its simplicity gives a modern design and feel to any home. Our Smooth skin, incorporated with a variety of panel designs and glass options, gives a clean, minimal look to any of our fiberglass doors.

Smooth

Plastpro’s High Velocity Hurricane Zone (HVHZ) Impact Doors are engineered to withstand the force of flying objects, while maintaining all the benefits and beauty of our door aesthetic. Our Impact Doors are created, tested, and certified to meet the most stringent wind and impact code requirements in the nation.

HVHZ Impact

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Property	Value
Volts	600
UL Listings	Single conductors in accordance with performance requirements of ICEA S-95-658 and UL 44 Class XL
Performance Standards	Cable components are in compliance with the maximum leachable lead level required by the EPA in 40CFR, Part 261
Construction - Pair Assembly	Two insulated conductors twisted with a flexible strand, tin-coated copper drain wire, a helically applied aluminum/ polyester laminated tape shield and an isolation tape
Construction - Overall Shield System	Helically applied aluminum/polyester laminated tape shield in continuous contact with a flexible strand, tin- coated copper drain wire
Construction - Jacket	Reduced wall, black, flame retardant, low smoke, zero halogen, crosslinked polyolefin jacket
Construction - Insulation	20 mils of flame retardant crosslinked polyolefin meeting performance requirements of ICEA S-95-658 and UL 44 Class XL
Construction - Fillers	As applicable
Construction - Conductor	Tin-coated copper conductors, Class “B” strand (ASTM B8 & B33)
Construction - Circuit Identification	One black and one red insulated single conductor in each pair with printed pair numbers on both singles for pair identification (alternate methods also available)
Construction - Cabling	Required number of pairs cabled
Construction - Binder Tape	Helically applied polyester
Product Category	Instrumentation
Applications	Harsh Environment Power Control Instrumentation
Market Served	Nuclear
Temperature	90ºC

Product Details

X-Link® TC Instrumentation Cable Multi-Shielded Pairs With Overall Shield (XLPO/LSZH-XLPO)
