Product Details
| Property | Value |
|---|---|
| Volts | 600 |
| UL Listings | Type TC UL 1277 • Type LS UL 1277 and UL 1685 • 90°C both wet and dry locations• Jacket UL class XL/90°C • sunlight resistance• gasoline and oil resistance |
| Performance Standards | Insulation ICEA • Insulated conductors Type RFHH-2 • • IEEE 1202/FT4 flame test and ICEA 70,000 BTU/hr flame test (T-30-520) • vertical flame test Type A ICEA S-95-658 (6.8.2) • ICEA publication T-33-655, Type II• NFPA 130 & 502 |

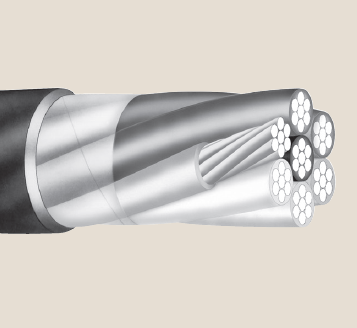

| Construction - Jacket | Reduced wall, black, flame retardant crosslinked low smoke zero halogen polyolefin |
| Construction - Insulation | Flame retardant low Smoke Zero Halogen crosslinked polyolefin |
| Construction - Fillers | (Where required) |
| Construction - Conductor | Annealed, tin-coated copper, class “B” strand (ASTM B-8 & B-33) |
| Construction - Circuit Identification | Printed numbers per ICEA Method 4. (Alt. colors available upon request) |
| Construction - Binder Tape | Helically applied polyester |
| Product Category | Instrumentation |
| Applications | Harsh Environment Power Control Instrumentation |
| Market Served | Transit |
| Temperature | 90ºC |
