LSZH Data Communications Cable

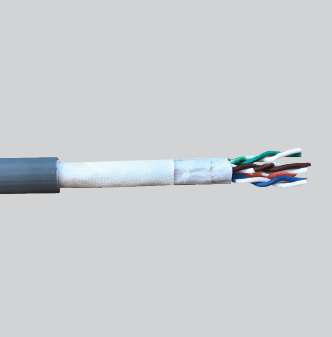

Hublink LSZH Data Communications Cable

HUB-Link® LSZH Data
Communications cables are ideal
for the following applications:
• Transit, Subways, Tunnels
• Various Mass Transportation
Facilities
• Voice and Data (HT02)

HUB-Link® LSZH Data Communications Cable

Lake House

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Material

Adjustable ventilated wire shelving systems are economical, functional, and extremely durable. The ventilated nature of the wire components promotes airflow which can be a crucial consideration in some applications or environments.

Pantry Reach-In ShelfTrack® Adjustable Wire Series

With its attractive and intelligent patented hardware, ExpressShelf™ installs quickly and easily with basic tools or a drill template and eliminates the need for caulking and painting.

Pantry Walk-In ExpressShelf™ Series

MasterSuite® is ClosetMaid’s top-of-the-line closet and storage system. MasterSuite® offers a host of attractive design options and convenient accessories to meet the needs of almost any residential or commercial application where maximizing storage space is desired..

Closet Reach-In MasterSuite® Series

Manufactured from a combination of robust, industrial-grade engineered wood with a highly durable melamine finish and solid wood drawers, MasterSuite® is built for lasting luxury. The system provides almost limitless configurations of shelves, cabinets, drawers, hang rods and more, accommodating any functional requirement in virtually Walk-In Closet space.

Closet Walk-In MasterSuite® with Island Series

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Property	Value
cUL Listing	Type CMG-ST1
Volts	300
UL Listings	UL 444 • UL 13 • UL Type CL3-ST1 • UL 1685 • UL Approved 90°C
Performance Standards	ICEA S-116-732 (Cat 6A & 6) • ICEA S-90-661 (Cat 5e) • ETL Verified to ANSI/TIA-568-.2-D • IEEE 1202/ FT-4 • NFPA 70 • NFPA 130 & 502 • NES 7113 for Toxicity Index < 2.0% • MIL-C-24643 Halogen Content < 0.2% • Acid Gas Content < 2.0% • ICEA T-33-655 (Smoke for Thermoplastic Type II Jackets) • NEMA 63.1
Construction - Conductor	24 AWG (Cat 5e) & 23 AWG (Cat 6/6A) Solid Bare Copper
Construction - Cable Consctruction	4 Pairs
Construction - Drain Wire	24 AWG Tinned Copper (Shielded Constructions Only)
Construction - Insulation	Crosslinked Polyolefin
Construction - Jacket	Gray UV Resistant LSZH (Alternative colors available upon request)
Construction - Tape 1	Aramid Tape
Construction - Tape 2	Flame Retardant Woven Fabric
Applications	Harsh Environment Power Control Instrumentation
Market Served	Transit
Temperature	90ºC
Product Category	Communications, Signal
