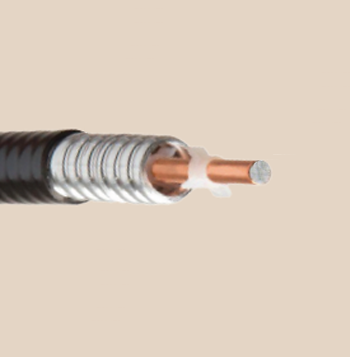

Trilogy® Transline Cable - AC012J50 PROXY

Trilogy® Transline Cable - AC012J50 05

Trilogy® Transline Cable represents a significant advancement in transmission line cable technology. The cable’s innovative design provides exceptional RF performance, low attenuation, and superior durability, which are critical for modern telecommunications systems.
Its air dielectric design prevents water migration and enhances signal quality, ensuring reliable service in various environments. (AC012J50)

TRILOGY® Transline Cable Standard "J" Black Jacket (AC012J50)
