Product Details

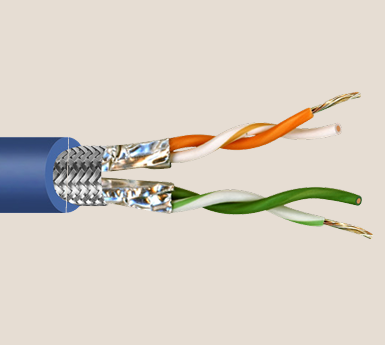

Exane® CAT 7 2 Pairs 22 AWG, Train car applications NFPA 130 Compliant
Applications
(E)Mobility
Description
LSHF Insulation and Thermoset LSHF Outer Jacket (ET59)
Features
- Superior mechanical properties
- Ruggedized construction, excellent mechanical toughness
- Operating temperature -40°C to 90°C
- Passes temperature cycling test -30°C to +125°C, 250 cycles
- Ozone resistance
- Tested to the following RP-585 tests: Abrasion test, Notch Propagation, Cut through
| Property | Value |
|---|---|
| UL Listings | Passes UL 1685 flame test with IEEE 1202/FT4 Flame Method and smoke measurement |
| Performance Standards | Passes the spread of fire and smoke emissions test requirements for low voltage wire and cable in accordance with NFPA 130-2017 Article 8.6.7.1.1 for transit vehicle application |
| Construction - Pairs | Two Conductors twisted together with a foil shield |
| Construction - Outer Jacket | Dark Blue, Cross-Linked Low Smoke Halogen Free Jacket |
| Construction - Conductor | Stranded Tin Copper 22 AWG (7/30) |
| Construction - Braid | 36 AWG, Tin Copper |
| Construction - Insulation | Foam PE Low Smoke Halogen Free insulation |
| Construction - Core Assembly | Two twisted pairs cabled together |
| Applications | (E)Mobility |
| Temperature | 90ºC |
| Product Category | Communications, Signal |
| Market Served | Rollingstock |
