Description

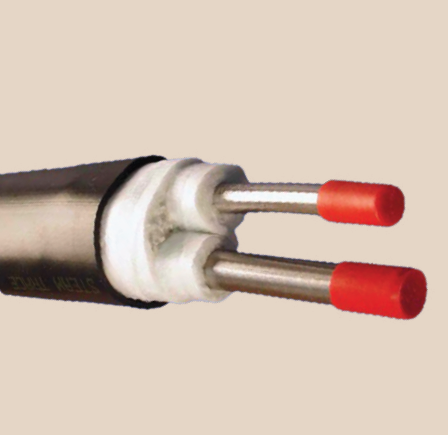

Series 2212/2214 Light Steam Traced Tubing is thermally insulated and prefabricated. These performance- engineered products are designed to protect process fluids from freezing
in process lines using saturated steam where the process operating temperatures exceed 200°C. The tubes are cabled to provide solid contact and consistent heat transfer throughout the bundle length.
Each line is comprised of the following elements:
• Single or multiple metal process tube(s)
• Metal steam tracer tube cabled with, and in constant contact with the process tube(s)
• Moisture resistant, non-wicking, inorganic fibrous glass thermal insulation sized for maximum operating temperature
• Seamless, weather protective jacket, choice of: lead-free low temperature FRPVC; halogen-free FRTPU;
flame retardant 125°C Rated FRTPE
The compact energy-efficient design keeps the outer jacket at or below 77°C while transporting fluids at temperatures up to 400°C (DU23)
Features
- Compact design
- Low heat loss
- Light, durable, easy to handle
- Low maintenance
- Employee protection
- Cost savings of up to 50% over field fabrication
- Easy to Install
- Consistent and predictable thermal characteristics
- Made in USA
