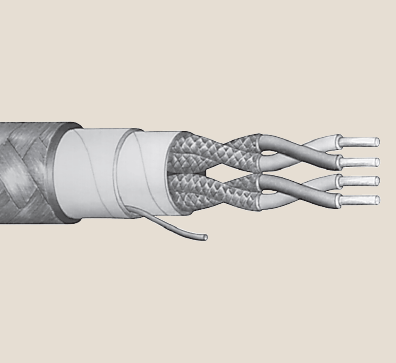

Product Details
.png)
| Property | Value |
|---|---|
| Construction - Binder Tape | Helically applied polyester |
| Construction - Cabling | Required number of pairs cabled together |
| Construction - Circuit Identification | Individual pair single conductors color coded to ANSI requirements by means of colored braids with printed pair numbers on both singles for pair identification |
| Volts | 600 |
| Performance Standards | Silicone rubber insulation ICEA S-19-81 • Class 1E IEEE 383-1974 and IEEE 323-1974 • IEEE 383-1974 70,000 BTU flame test as modified by NRC Reg. Guide 1.131 • MC 96.1 • ICEA T-29-520 210,000 BTU flame test • Single conductors IEEE 383-1974 para. 2.5.6 (ICEA S-19-81 Section 6.19.6) • 10 CFR 50 Appendix B |
| Construction - Shield System | Helically applied aluminum/polyester laminated tape shield in continuous contact with a flexible strand, tin-coated copper drain wire |
| Construction - Pair Assembly | Two insulated and braided conductors twisted with a flexible strand, tin-coated copper drain wire and a helically applied aluminum/polyester laminated tape shield |
| Construction - Overall Covering | Rockhide braid* with high temperature finish |
| Construction - Insulation | Proprietary heat, moisture and radiation resistant silicone rubber |
| Construction - Fillers | As applicable |
| Construction - Conductor | Solid alloys per ANSI MC 96.1 (Extension Grade, standard limits of error) |
| Construction - Covering | Glass braid with high temperature finish |
| Product Category | Instrumentation |
