Product Details
| Property | Value |
|---|---|
| Volts | 600 |

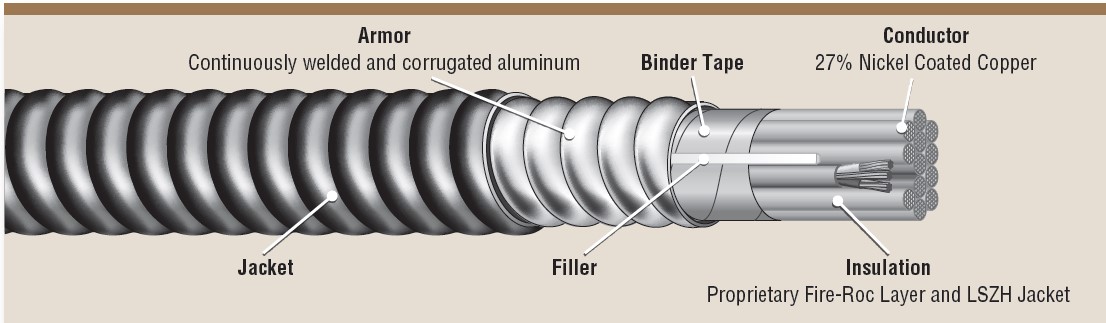

| Construction - Outer Jacket | Flame Retardant Polyvinyl Chloride (PVC) or optional Low Smoke Zero Halogen (LSZH) polyolefin |
| Construction - Fillers | As Required |
| Construction - Conductor | Stranded, Nickel Coated Copper |
| Construction - Circuit Identification | ICEA Method 3: Black insulation with printed numbers; Black and White for pairs; Black, White and Red for triads |
| Construction - Armor | Continuously welded and corrugated aluminum |
| UL Listings | NEC Type MC in accordance with UL Standard No. 1569 and MC-HL per UL Standard No. 2225 • 40°C • CT (Cable Tray) use •FT4 flame test designation • Type CWCMC to IEEE as IEEE 1580 and UL 1309 |
| Product Category | Power, Control, Instrumentation, Communications, Fire Safety |
| Performance Standards | Third party qualification for 30 minutes at 2000°F Rapid Rise test , Modified IEC 60331-11 with side bricks and 0.3A load (light bulbs) • 90°C Wet and Dry per NEC • IEC 60331-11 flame test modified to 3 hours @ 2000°F • Weather and sunlight resistant |
| cUL Listing | CEC type ACIC IAW CSA 22.2 No. 239 |
| CSA Listings | CSA C22.2 No. 245 as marine shipboard cable |
| Construction - Pair Assembly | Copper/mylar tape with drain/ground |
| Construction - Insulation | Proprietary Low Smoke Zero Halogen thermoset Fire-Roc layer and thermoset low smoke zero halogen covering |
| Region | Canada |
| Construction - Binder Tape | Helically applied |
