Product Details

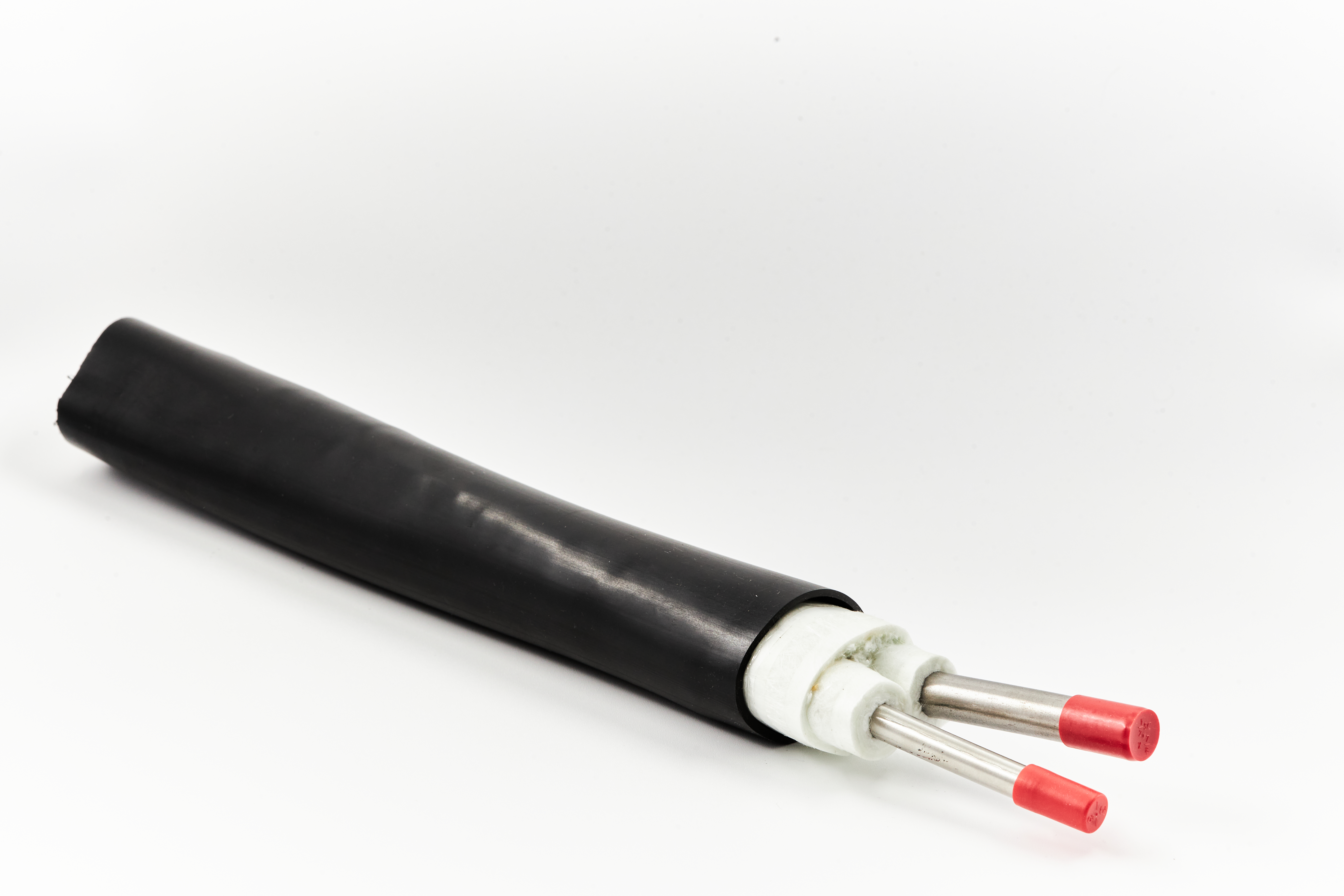

Series 2203 and 2204 Light Steam Traced tubing bundles are designed to protecta process fluid from freezing at ambient temperatures to –40°C using saturated steam. Each bundle consists of: • Single or multiple pre-insulated metal or polymer process tube(s) • Pre-insulated metal steam tracer tube cabled with, and in constant contact with the process tube(s) • Moisture resistant, non-wicking, inorganic fibrous glass thermal insulation • Seamless, weather protective jacket, choice of: lead-free low temperature FRPVC; halogen-free FRTPU; flame retardant 125°C Rated FRTPE Designed for light tracing of process, sampling and impulse lines, Series 2202/2204 bundles are recommended for use in situations where heavy tracing will cause high temperature degradation of boil-off of the process fluids. Highly efficient and compact. These products are designed to limit the jacket temperature to a nominal surface temperature of 60°C or lower at ambient temperatures of 27°C using 204° (16 BARG) saturated steam. Maximum temperature rating of Series 2201/2204 is 204°C. Operating at higher temperatures may result in deterioration of the components or changes in operational characteristics. Higher temperature designs for tracing applications up to 593°C are also available as Series 2212/2214. (DU21)
