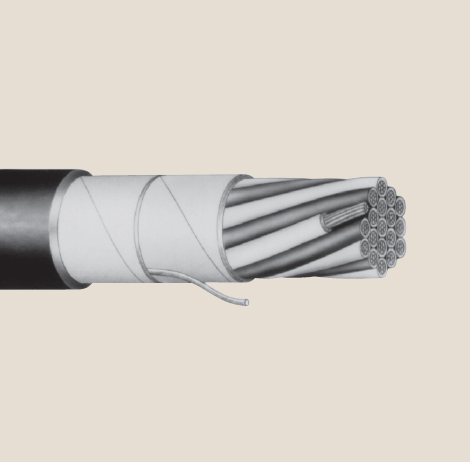

Product Details
| Property | Value |
|---|---|
| Construction - Circuit Identification | Printed numbers per ICEA Method 4. (Alt. colors available upon request) |
| Construction - Fillers | (Where required) |
| Construction - Insulation | Flame retardant low Smoke Zero Halogen crosslinked polyolefin |
| Construction - Shield System | Helically applied aluminum/polyester laminated tape shield in continuous contact with flexible |
| Market Served | Transit |
| Performance Standards | ICEA • IEEE 1202/FT4 vertical tray flame test and ICEA 70,000 BTU/hr vertical tray flame test (T-30-520) • ICEA S-95-658 (6.8.2) and T-33-655, Type II • NFPA 130 & 502 |
| Product Category | Instrumentation, Signal, Power |
| Temperature | 90ºC |
| UL Listings | Type RFHH-2 • UL listed Type LS (limited smoke) per UL 1277 and UL 1685 • 90°C for both wet and dry locations • XL/90°C • Sunlight resistance • Gasoline and oil resistance |
| Volts | 600 |
| Applications | Harsh Environment Power Control Instrumentation |
| Construction - Binder Tape | Helically applied polyester |
| Construction - Conductor | Annealed, tin-coated copper, class “B” strand (ASTM B-8 & B-33) |
| Construction - Jacket | Reduced wall, black, flame retardant crosslinked low smoke zero halogen polyolefin |
