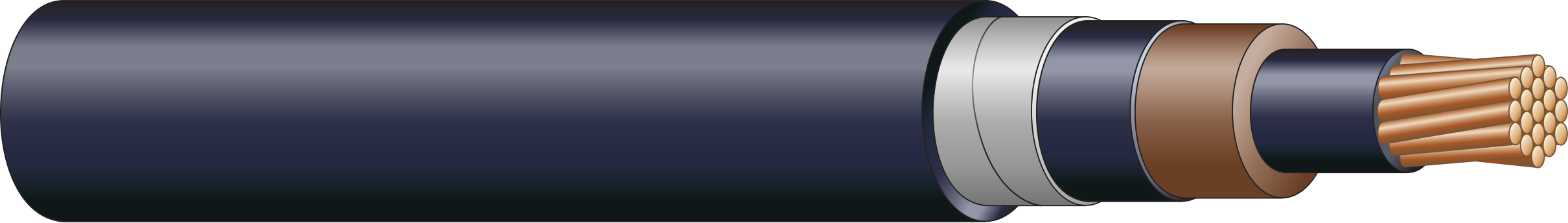

Kerite MV Power Cable 5-35kV(tin)

This specification describes copper conductor, copper tape shielded, power cables having Ethylene Propylene Rubber (EPR) insulation and a Polyvinyl Chloride (PVC) jacket. The cable is designed for use in three-phase systems with voltage not exceeding 5,000 volts phase to phase and conductor temperatures not exceeding 105°C for normal operation, 140°C for emergency overload conditions, and 250°C for short circuit conditions. The cables are sunlight resistant and are suitable for direct burial, cable tray use, and installation in ducts.

Kerite® Medium Voltage Cable 5kV

Taste Coffee

Mill Creek Colonial Blend

M_B_Mill Creek Colonial Blend

Mill Creek Colonial Blend brings warm honey natural stone color tones to our Fieldledge Line. The historic appearance of randomly layered stone is created with varying heights and lengths for full and thin veneer stone (download/view spec sheet for detailed dimensions). Its natural real stone colors range from browns to buffs, along with light grays to buffs with occasional blue veins.

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Marmon Industrial Energy & Infrastructure Technical Resources

Marmon IEI works within a wide variety of industries and markets.

Request A Quote

Technical Resources

Masterformat Number

Alchemco

Manufacturer

Christie Digital

The Bilco Company

Stonepeak

Moore Co Inc

95 CSI

Rinnai America Corp

Cornell Cookson

Viessmann Digital

Tubelite

Jonti Craft

The Noble Co

Interstate Brick

MIRAGE Flooring

Armacell

Atkore International

GAF Materials

Novawall Systems, Inc.

System Level Account

Heating & Cooling Products

J&J / Invision

Armacell, LLC

Contrax (MeTEOR)

Georgia Pacific

Meteor Lighting

Draper, Inc.

Big Ass Fans/ Big Ass Solutions

Shaw Industries

Bernina Flooring

Keilhauer

Subcategory

Arconas

Davis Colors

Oldcastle Architectural

Product Line

Media Technologies

Roxul

The VMC Group

Armstrong International - Hot Water Products

Carnes Co

Karona Door

Ideal Industries Inc

Tiger Foam - Commercial Thermal Solutions Inc

Kolbe & Kolbe Millwork Co., Inc.

InPro

VIA Inc [VIA Seating]

Nanawall

Armstrong Commercial Flooring

H.E. Williams, inc.

Acutherm

Assembly Code

Penco Products, Inc.

Continental

Chief is a division of Milestone AV Technologies

Friedrich

Armstrong Medical Industries

Bard Manufacturing Co

Delray Lighting Inc.

Stepstone Inc

Knauf Insulation

USA Capitol

Moderco Inc

General Cable

Tandus-Centiva

Slant Fin

Armstrong International

ClimaCool

AmTab Manufacturing Corp

Power-Strut®

Owens Corning

NexLight

Caleffi

Coronet, Inc

Schott North America

Schneider Electric USA Inc

National Office Furniture, Inc.

Tarkett

Kimball Office

Prudential Lighting

Cardinal Detecto

Jeld-Wen, Inc.

American Gypsum

Tankless Inc.

Behavioral Safety Products

Saint-Gobain: CertainTeed Insulation

Sico Inc

Simonton Windows

ALPOLIC/Mitsubishi Plastics Composites America

Wheatland Tube Company

Test - Jordan Test Account

Hunter Douglas

Muzo

Excel Dryer

Smith System

Maxxon Corp

Paragon

Alumni Classroom Furniture

Property	Value
Applications	Harsh Environment Power Control Instrumentation
Temperature	105°C
Volts	5kV
Product Category	Power, Medium Voltage Power
Construction - Conductor	Non-Filled Compact Copper
Construction - Conductor Shield	Kerite® nonconducting shield
Construction - Insulation	Kerite® DR-EPR
Construction - Insulation Shield	Semiconducting Thermoset
Construction - Metallic Shield	Bare Copper Tape Metallic Shield
Construction - Barrier Tape	Flame barrier tape(s)
Construction - Jacket	PVC Jacket-Black
Performance Standards	Designed and tested in accordance with ICEA S-97-682 and AEIC CS-8 • Kerite® cables meet ICEA S-93-639 for medium voltage cables with tape shield • Designed and tested in accordance with UL 1072 • Cable components, raw materials, and testing procedures shall meet the requirements of publications referenced in relevant parts of ASTM and ICEA standards
