Product Details
| Property | Value |
|---|---|
| Volts | 600 |

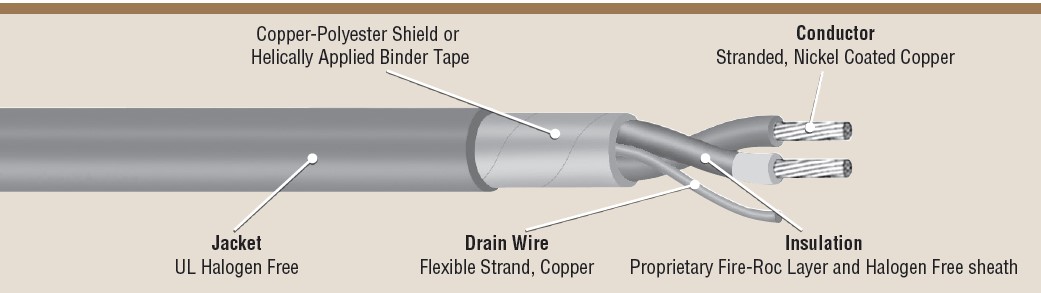

| Construction - Binder Tape | As required, shields are copper polyester laminated tape with flexibly stranded copper drain wire. Individual pairs or triads may be shielded or unshielded. Cables may have overall shields if required |
| CSA Listings | CSA 22.2 No. 38 Section 5.4 • CSA Standard C22.2 No. 239 • CSA Standard C22.2 No. 230 |
| Construction - Thermal Barrier | Inorganic layer |
| Construction - Jacket | Black Halogen Free (colors available on request) |
| Construction - Insulation | Proprietary Halogen Free thermoset Fire-Roc layer and thermoset halogen free covering |
| cUL Listing | CEC Type CIC • CEC Type TC |
| Construction - Conductor | Stranded, nickel coated copper |
| Construction - Circuit Identification | ICEA Method 3: Black insulation with printed numbers and color names — black and white for pairs — black, white and red for triads. In addition, legs other than black have colored stripe in the named color |
| UL Listings | API 2218 flame test per UL 1709 oven test at 2000°F for 20 minutes with heat flux of 65,000 ± 5000 BTU/h – ft2 (204 ± 16 kw/m2) • NEC Type TC in accordance with UL1277 • Jacket Material UL Recognized Halogen Free “HF” per UL 2885 • Singles UL Type RFFH-3 • Singles wet rated per UL44 |
| Performance Standards | Cables low smoke halogen free LSHF per ICEA S-73-532 and ICEA T-33-655 • Sunlight Resistant • Approved and marked with “FT-4” flame test designation • ABS Recognized for marine shipboard • -ER meets Type MC cable and can be used per NEC 336.10 (7) for extended runs |
| Region | Canada |
| Applications | Fire & Life Safety |
| Market Served | Oil & Gas, Clean Energy |
| Product Category | Circuit Integrity, Instrumentation |
| Temperature | 90ºC, 75ºC |
