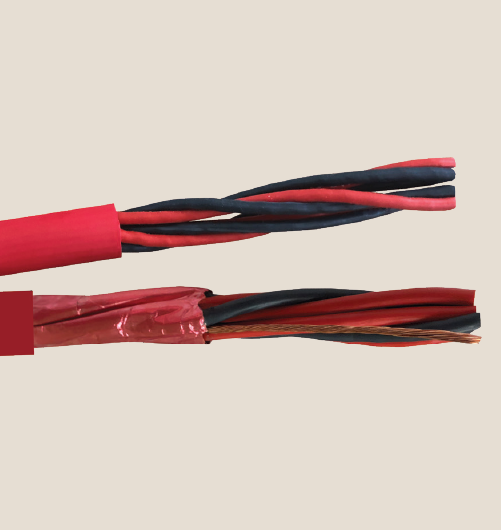

VITALink® 2-Hour Fire Resistive CIC Cable

Rock-Flex® ZHF RHW-2 RW90 Industrial Power Cable

VITALink® Ethernet Fire Resistive
cables are ideal for:
• Emergency VoIP
communications
• IP Area of Refuge
communication devices
• Addressable Class N fire alarm
devices
• Critical data communication
circuits (VC06)

VITALink® Ethernet Fire Resistive Cable

Scotch Plain

Assembly Code

Height

Depth

95 CSI

Masterformat Number

File Type

Subcategory

04 CSI

Width

Mounting

Brand

Manufacturer

OmniClass Number

Region

Product Line

District

Type

Visual Light Transmittance

Heat Transfer Coefficient (U)

Finish

Shape

Glazing Material

Operation

Green Certification

Solar Heat Gain Coefficient

Sustainable Solution

Rating

Analytic Construction

Models

Locker Panel Material

Unit Material

Max. Frame Rate

Max IP camera inputs

Total storage capacity

Camera Tilt

Camera Pan

Max. Resolution

Internal hard drives

Performance Flooring

Tile and Flooring Installation

Structural Panels

Exterior Envelope

UL Details

Ceilings

multivalue attribute

ProductLine

04CSI

95CSI

AssemblyCode

MasterformatNumber

Frame Type

Applications

Interior-Exterior

Weather Performance

Performance Ratings

Stacking Location

Stacking Direction

Frame

Glazing

Max Height Range

Max Unit Width Range

Max Panel Width Range

Panel Design Options

Sill

Tracks

Wall Design

Accessories

Swing Door

Hardware

Product Type

Configuration

Model

Estimated Power Output

Light Transmittance

Module Dimensions

Series

Mount

LSX Modules Deep

Vision S Modules Deep

Vision L Modules Deep

GSX Modules Deep

Assembly Type

Composition

Unit of Measure

Colors

Application

Material Look

Component Type

Framing Types

Fire

Assembly Thickness

Sound Transmission Class (STC)

Apparent Sound Transmission Class (ASTC)

Sound Absorption (NRC)

Sound Attenuation (CAC)

Light Reflectance

Door Type

Parting

Collection

Color Group

Size (width x length x thickness)

Thickness

Wearlayer/Coating Type

Installation Method

Material

Commercial

Educational

Health Care

Surface and underground mining operations require cable solutions that can withstand the toughest conditions. Elements such as flexing, vibration, and impact found in harsh mining environments can make or break even the most rugged mining machinery. Marmon IEI understands how important high-performance and ruggedized cables are for critical power, control, and communications applications and offers a variety of specialized cables to meet any type of mining installation. From flexible power cables used in surface mining applications to MSHA-rated cables used in underground equipment, Marmon IEI has solutions that can perform in the toughest environment reducing downtime and keeping critical mining operations running.

Mining

Contact Sales Rep

Marmon IE&I Collection

Find Product Information, Download Submittals, Request Technical Services

Leaders in Innovative Design, Production, and Technical Support of Specialty Wire, Cable, Pre-Insulated and Steam Traced Tubing For Your Next Project

Marmon Industrial Energy & Infrastructure Technical Resources

Marmon IEI works within a wide variety of industries and markets.

Request A Quote

Technical Resources

Alchemco

Christie Digital

The Bilco Company

Stonepeak

Moore Co Inc

Rinnai America Corp

Cornell Cookson

Viessmann Digital

Tubelite

Jonti Craft

The Noble Co

Interstate Brick

MIRAGE Flooring

Armacell

Atkore International

GAF Materials

Novawall Systems, Inc.

System Level Account

Heating & Cooling Products

J&J / Invision

Armacell, LLC

Contrax (MeTEOR)

Georgia Pacific

Meteor Lighting

Draper, Inc.

Big Ass Fans/ Big Ass Solutions

Shaw Industries

Bernina Flooring

Keilhauer

Arconas

Davis Colors

Oldcastle Architectural

Media Technologies

Roxul

The VMC Group

Armstrong International - Hot Water Products

Carnes Co

Karona Door

Ideal Industries Inc

Tiger Foam - Commercial Thermal Solutions Inc

Kolbe & Kolbe Millwork Co., Inc.

InPro

VIA Inc [VIA Seating]

Nanawall

Armstrong Commercial Flooring

H.E. Williams, inc.

Acutherm

Penco Products, Inc.

Continental

Chief is a division of Milestone AV Technologies

Friedrich

Armstrong Medical Industries

Bard Manufacturing Co

Delray Lighting Inc.

Stepstone Inc

Knauf Insulation

USA Capitol

Moderco Inc

General Cable

Tandus-Centiva

Slant Fin

Armstrong International

ClimaCool

AmTab Manufacturing Corp

Power-Strut®

Property	Value
Construction - Conductor	18 AWG Solid Bare Copper
Construction - Insulation	Low Smoke, Zero Halogen Thermoset Fire-Roc®
Construction - Jacket	Red Non-Halogen Flame Retardant Polyolefin (Sequential footage markers every 2 feet) Other jacket colors & non-black jacket striping available upon request
Construction - Shield	Copper Shield (Shielded constructions only)
Construction - Tape	Flame Retardant Tape
Construction - Drain Wire	18 AWG Stranded Bare Copper (Shielded constructions only)
CSA Listings	FAS 105 ST1 FT4 (Shielded constructions only)
cUL Listing	Type CMR-LS
Performance Standards	ANSI/UL 2196 2 Hour fire rating (See UL Fire Directory R27557) • ULC-S139/2196 Listed with Hose Stream Test for use in FHIT7 System 40A • NFPA 70, 72, 130, and 502 • Meets Cat 3 channel requirements • Transmits data speeds up to 10 Mbps • Sunlight Resistant • For use in Wet Locations • California State Fire Marshal Approved • RoHS Compliant
Volts	600
Construction - Cabling	2-4 Pairs
UL Listings	UL Type FPLR-ST1 (Shielded constructions only) and CL3R-ST1 • UL 1424 • UL 13 • UL 444
Region	Canada
Applications	Fire & Life Safety
Market Served	Commercial Infrastructure, Transit
Temperature	90ºC
Product Category	Communications, Circuit Integrity
