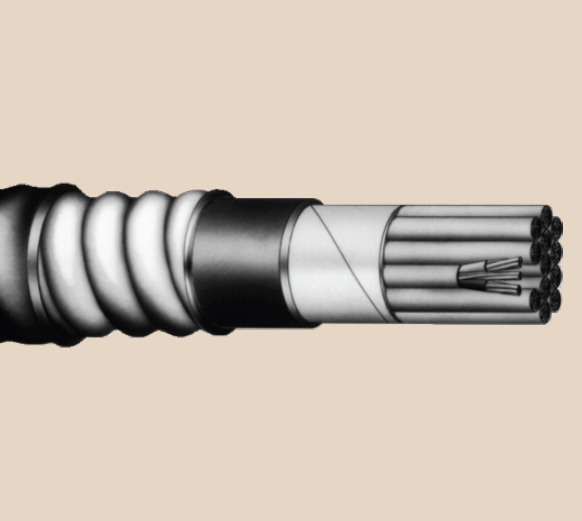

Product Details
| Property | Value |
|---|---|
| Construction - Color Code | ICEA Method 1; black, white for pairs - add red for triads with printed number |
| Construction - Fillers | (When required) |
| Construction - Insulation Shield | Aluminum/polyester shield with drain wire |
| Construction - Overall Shield System | Aluminum/polyester shield with drain wire |
| Construction - Inner Jacket | Polyvinyl chloride (PVC) |
| Construction - Insulation | Flame retardant polyvinyl chloride (PVC) |
| Construction - Conductor | Annealed, bare copper, Class “B” strand per ASTM B8 |
| Construction - Communication Wire | 22 AWG stranded bare copper wire with polyvinyl chloride (PVC) insulation |
| Performance Standards | Class 1, Division 2 hazardous locations • ICEA 210,000 BTU/hr and 70,000 BTU/hr flame tests and the IEEE-383 70,000 BTU/hr flame test |
| Construction - Outer Jacket | Polyvinyl chloride (PVC). |
| Construction - Armor | Continuously welded and corrugated aluminum |
| Volts | 600 |
| UL Listings | NEC Type MC, UL 1569 • 70,000 BTU/hr flame test, per UL 1685 and UL for CT use • IEEE 1202/FT-4 designation (flame test) • –40°C designation • Type FPL |
| CSA Listings | CSA-C22.2 No. 0.3 |
| Applications | Harsh Environment Power Control Instrumentation |
| Market Served | Oil & Gas |
| Temperature | 90ºC |
| Product Category | Instrumentation |
